Variant Coding (in case that the GDS is connected to the internet)

NOTE: In case that the state of HAC is enabled, operate "longitudinal G sensor Calibration" by GDS. (refer to Appropriate Service Information. )

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON".
3. Perform variant coding in "Vehicle S/W Management  " menu of the GDS. (Fig 1)
4. Fill in blanks with VIN number of the vehicle correctly. (Fig 2)
5. Check whether current variant code corresponds to the options which are applied to the vehicle. (Fig 3)
6. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to "Variant Code Reset" procedure.

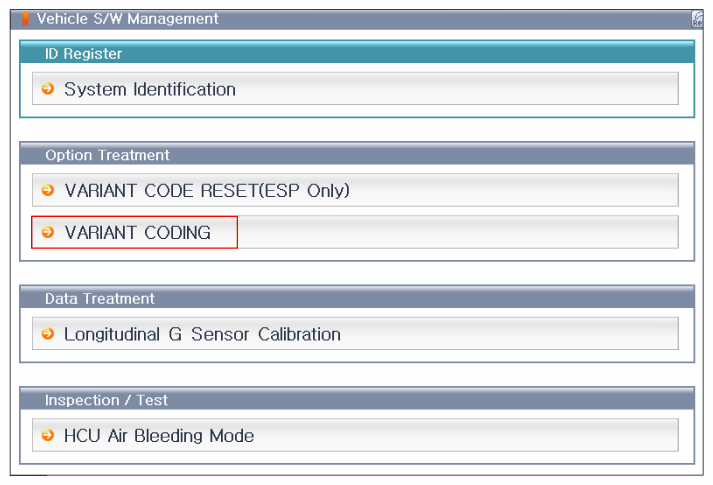

Fig 1: Scantool Display - Vehicle S/W Management

Courtesy of HYUNDAI MOTOR AMERICA

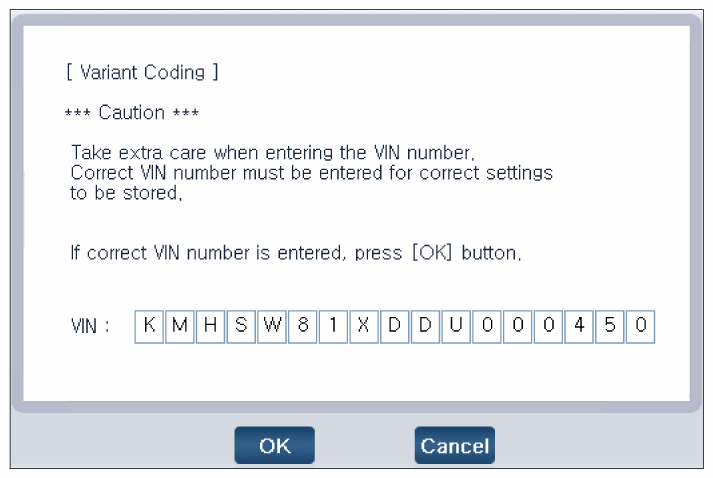

Fig 2: Scantool Display - Variant Code

Courtesy of HYUNDAI MOTOR AMERICA

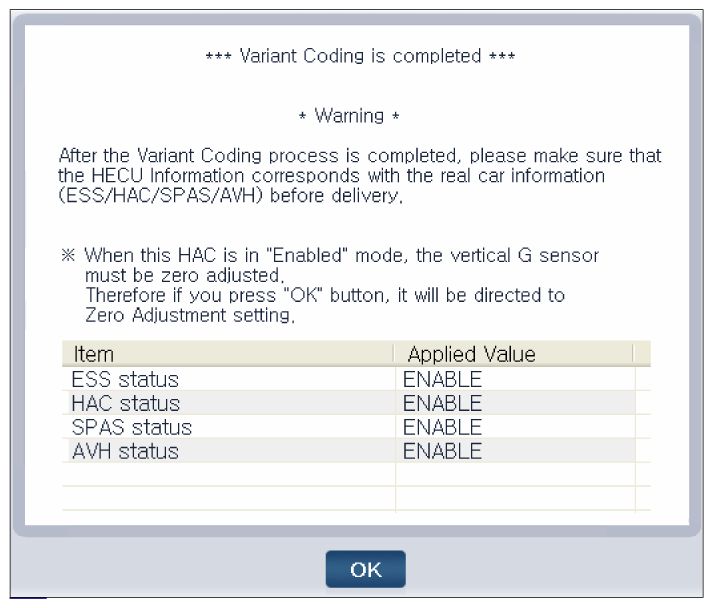

Fig 3: Scantool Display - Variant Code Completed

Courtesy of HYUNDAI MOTOR AMERICA
