Signal Waveform & Data

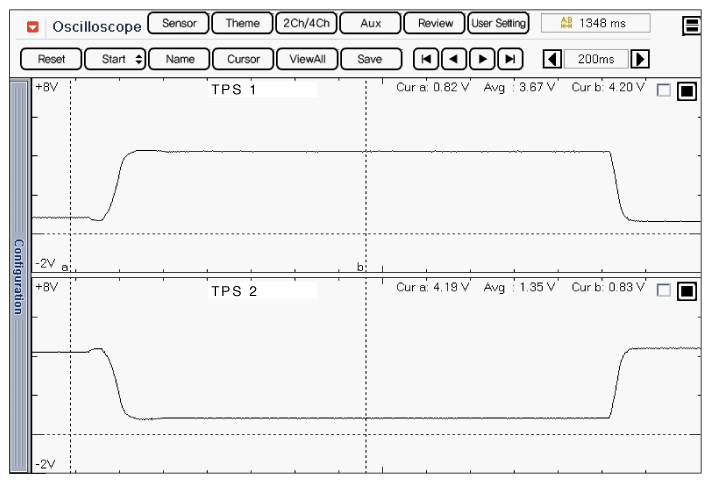

Fig 1: Scantool Display - Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
G12016752Courtesy of HYUNDAI MOTOR AMERICA
