Circuit Diagram: (M/T)

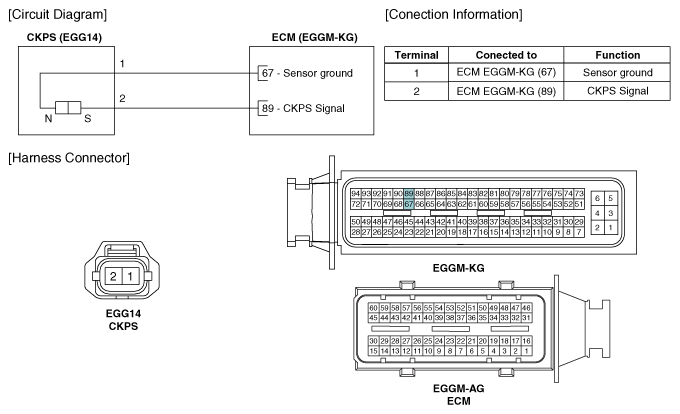

Fig 1: Crankshaft Position Sensor Circuit Diagram (M/T)

G12016393

Courtesy of HYUNDAI MOTOR AMERICA
