Circuit Diagram: A/T

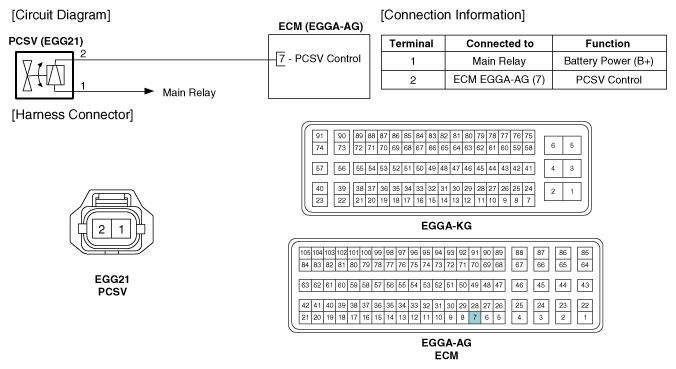

Fig 1: Purge Control Solenoid Valve Diagram (A/T)

G12016449

Courtesy of HYUNDAI MOTOR AMERICA
