Circuit Diagram: M/T

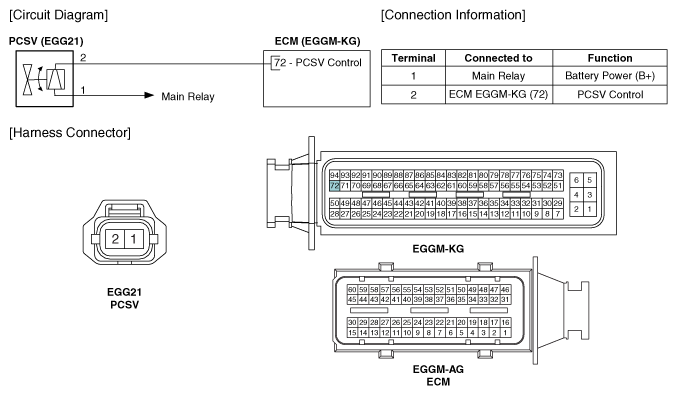

Fig 1: Purge Control Solenoid Valve Diagram (M/T)

G12016448

Courtesy of HYUNDAI MOTOR AMERICA
