Signal Waveform & Data

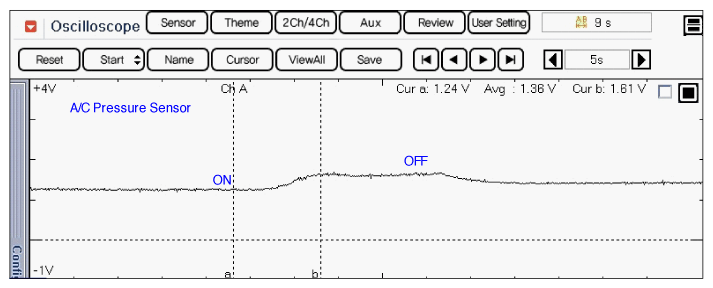

Fig 1: Screen Display - Normal Waveforms Of A/C Pressure Sensor During Time From Turning ON A/C Switch To Turning OFF A/C Switch
G12017072Courtesy of HYUNDAI MOTOR AMERICA
