Components and Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

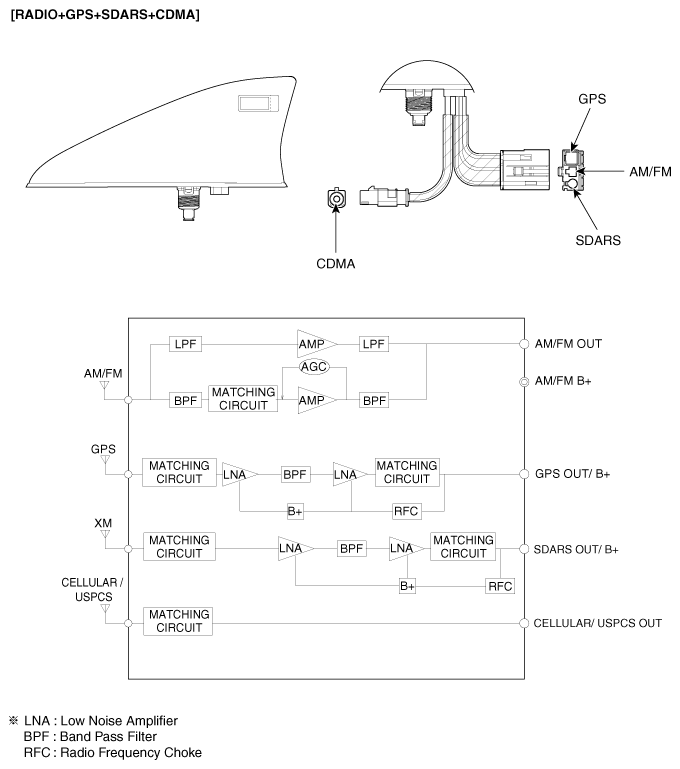

Fig 1: Roof Antenna Components (Radio + GPS + SDARS + CDMA)
G12054374Courtesy of HYUNDAI MOTOR AMERICA

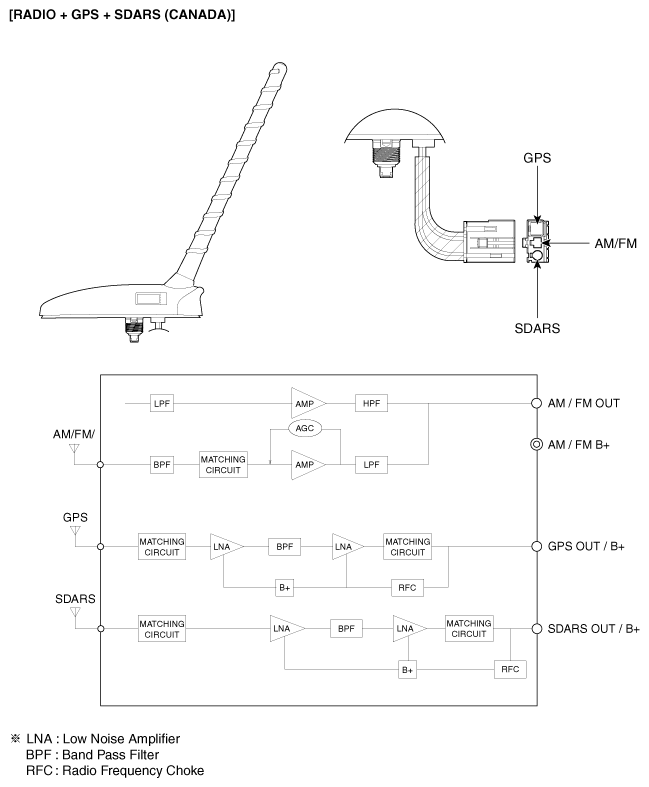

Fig 2: Roof Antenna Components - Radio + GPS + SDARS (Canada)
G12054375Courtesy of HYUNDAI MOTOR AMERICA
