Circuit Diagram

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

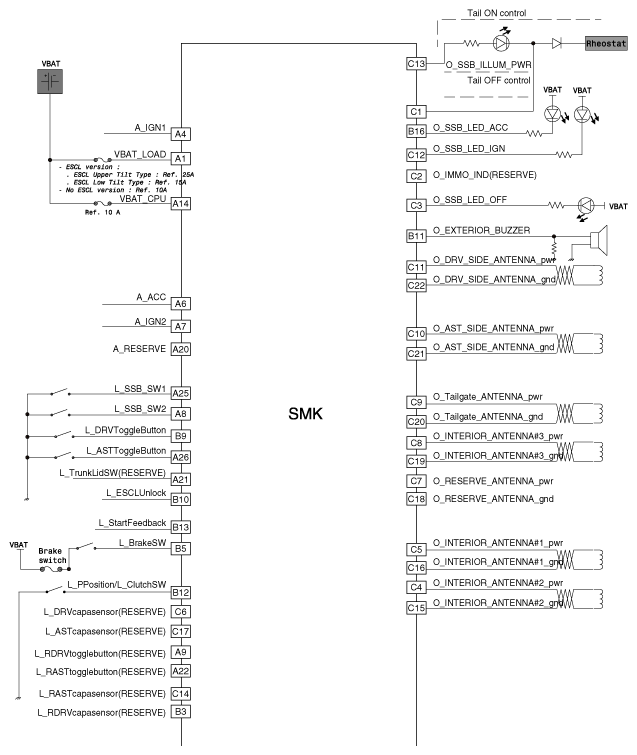

Fig 1: Smart Key Unit Circuit Diagram (1 Of 2)
G12054405Courtesy of HYUNDAI MOTOR AMERICA

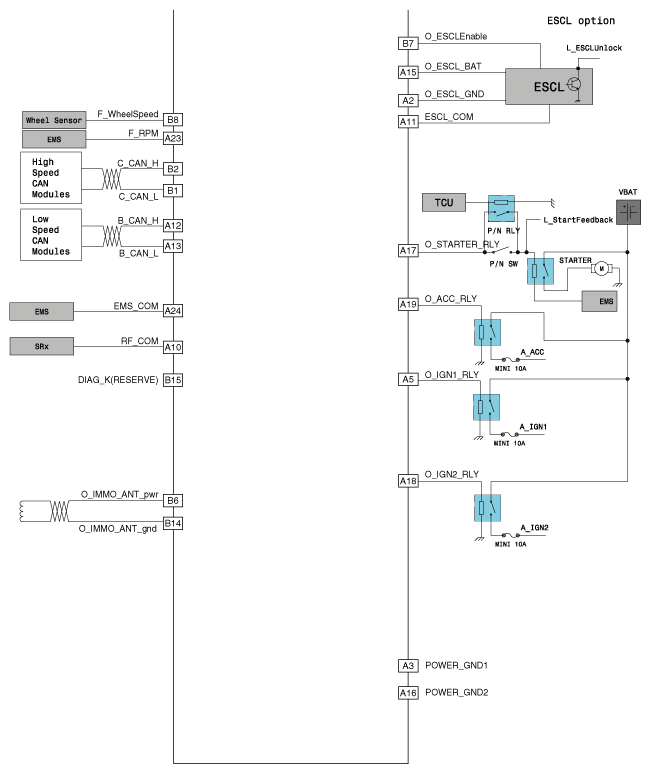

Fig 2: Smart Key Unit Circuit Diagram (2 Of 2)
G12054406Courtesy of HYUNDAI MOTOR AMERICA
