Smart Key Code Saving

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector (16 Pins)
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

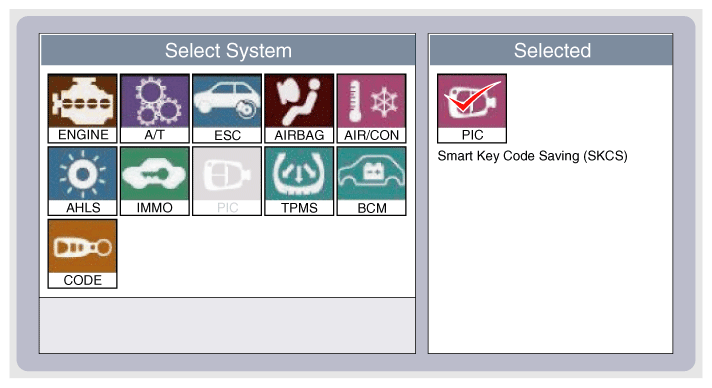

Fig 2: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA

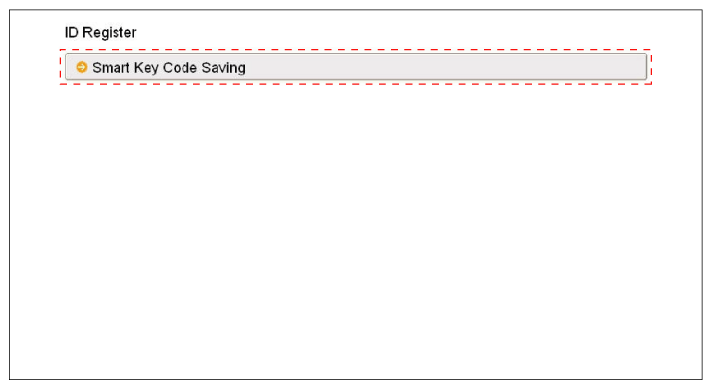

Fig 3: Scantool Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "ENTER" key, then the screen will be shown below.

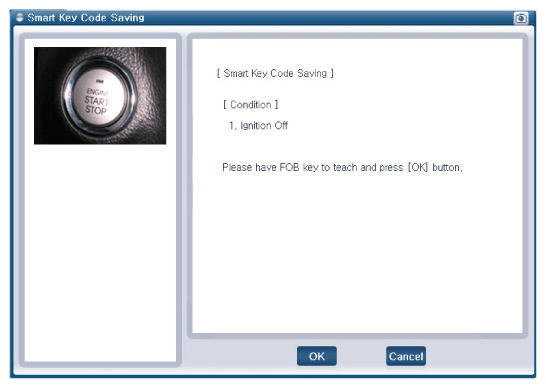

Fig 4: Scantool Display - Smart Key T eaching Menu
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.
Input the "Pin Code" for first key teaching.

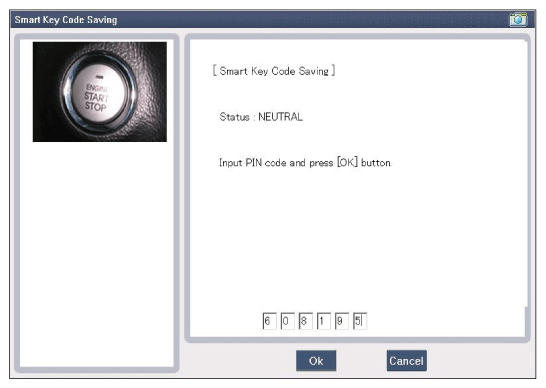

Fig 5: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of HYUNDAI MOTOR AMERICA

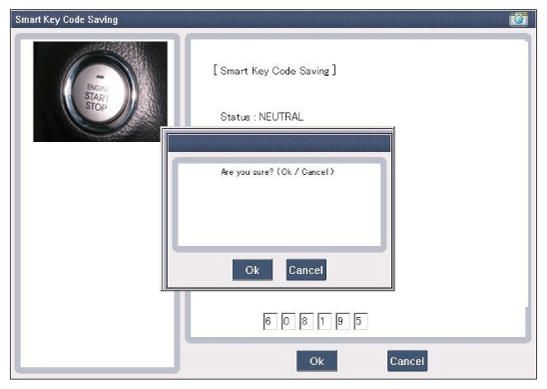

Fig 6: Scantool Display - Smart Key Code Saving (Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

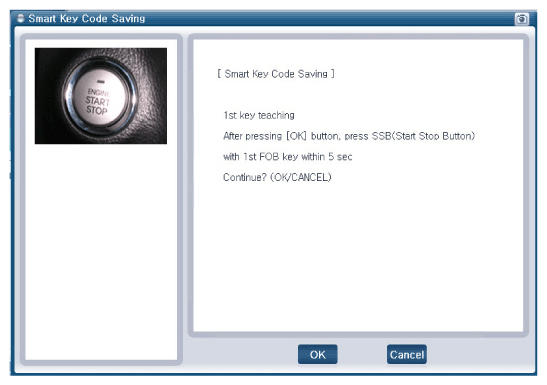

Fig 7: Scantool Display - Smart Key Code Saving (First Key Teaching)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First Key T eaching Completed".

Fig 8: Scantool Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA

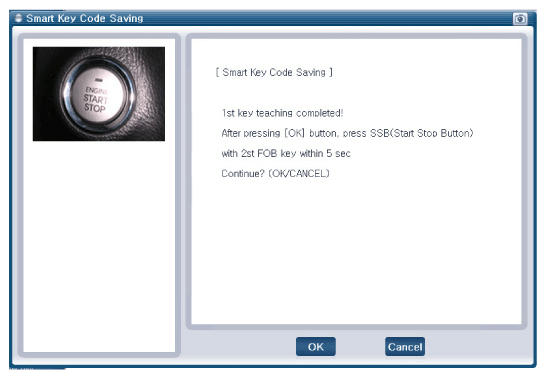

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Scantool Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

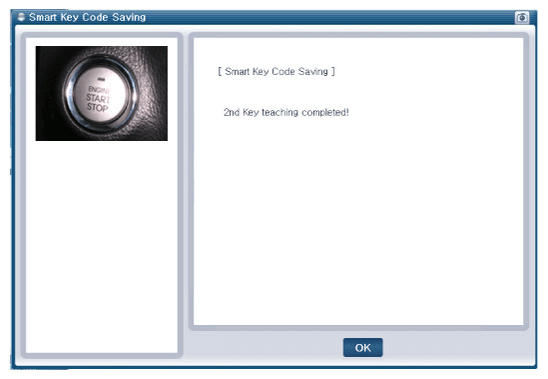

Fig 10: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown below when key teaching process is completed.

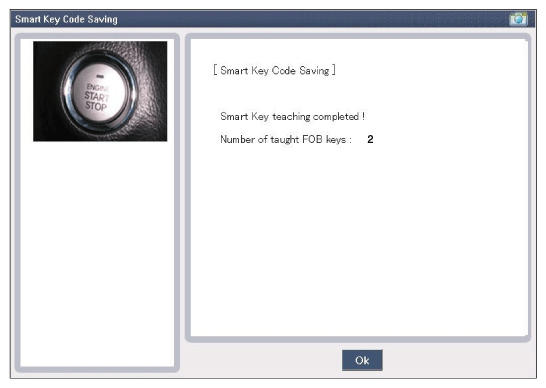

Fig 11: Scantool Display - Smart Key Code Saving (Smart Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
