Automatic Transaxle Control System
>>
Torque Converter Control Solenoid Valve (T/CON_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

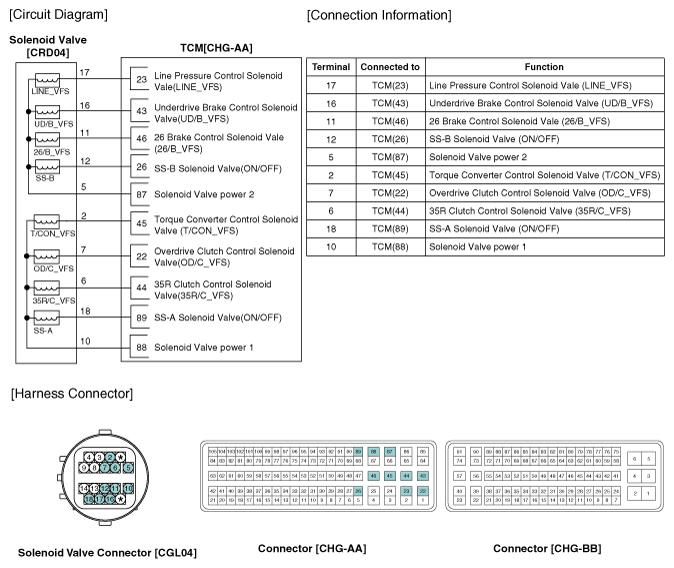

Fig 1: Torque Converter Control Solenoid Valve Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
