Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "CODE SAVING"

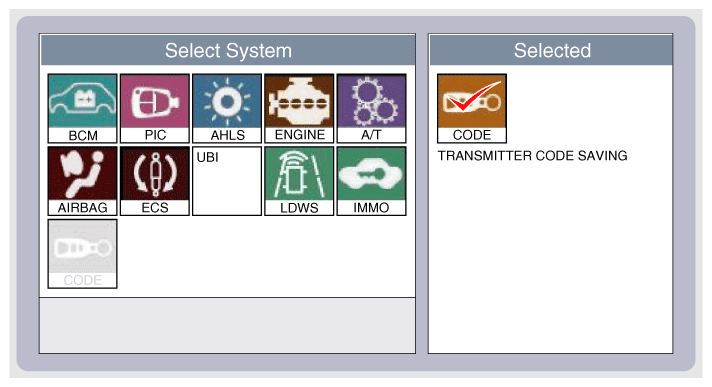

Fig 2: Scantool Display - Transmitter Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

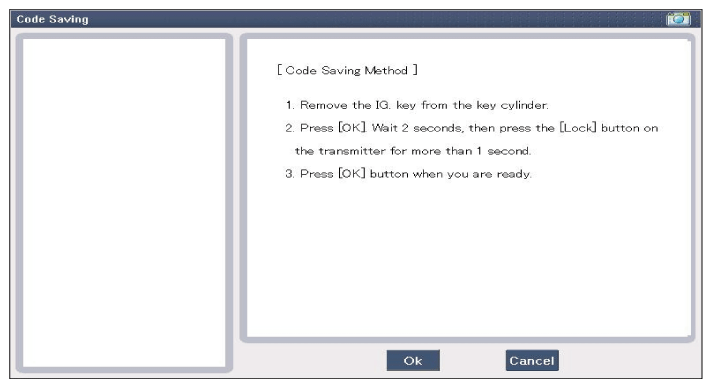

Fig 3: Scantool Display - Code Saving Method
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

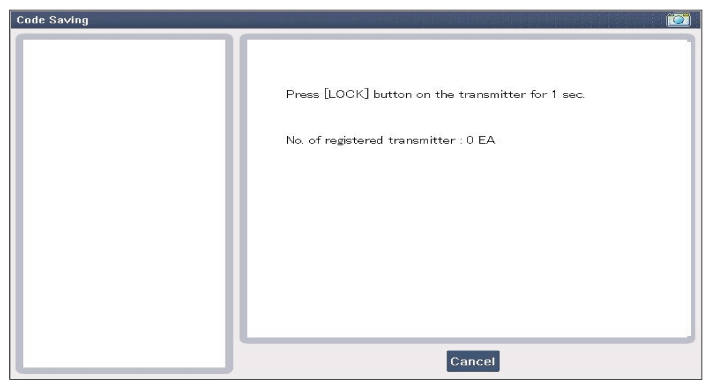

Fig 4: Scantool Display - Message (Pushing Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA

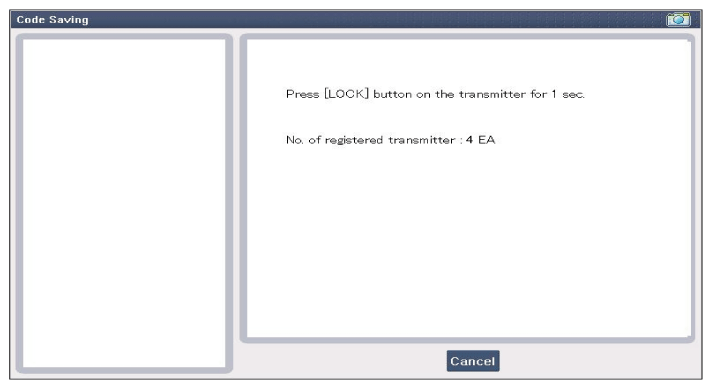

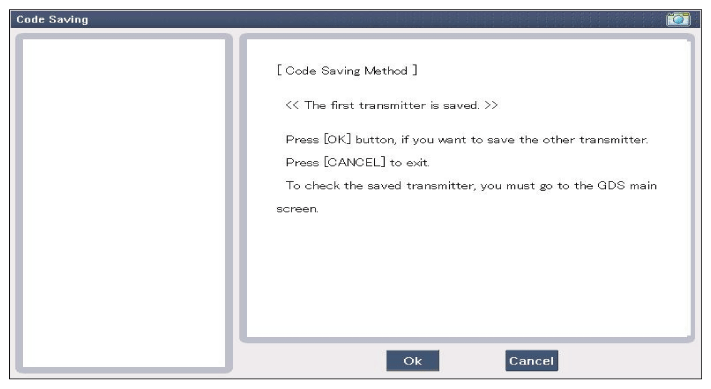

Fig 5: Scantool Display - Code Saving Method (First Transmitter Saved)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Scantool Display - Message (Pushing Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA

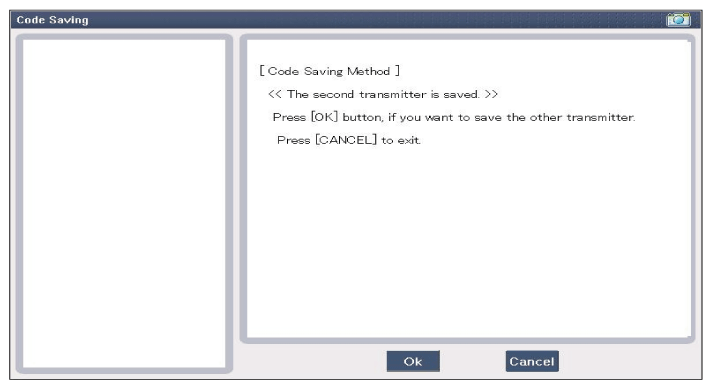

Fig 7: Scantool Display - Code Saving Method (Second Transmitter Saved)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Scantool Display - Message (Pushing Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA

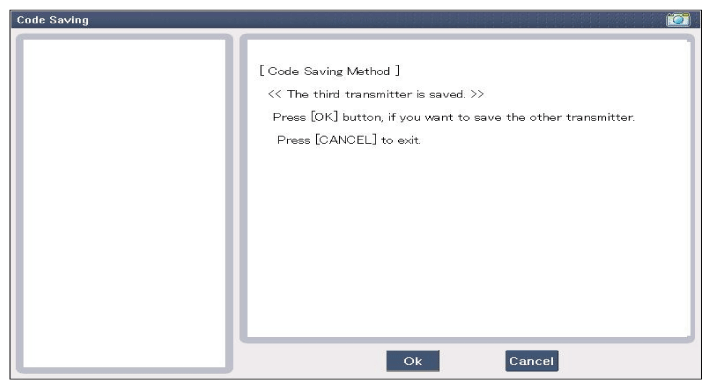

Fig 9: Scantool Display - Code Saving Method (Third Transmitter Saved)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Scantool Display - Message (Pushing Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA

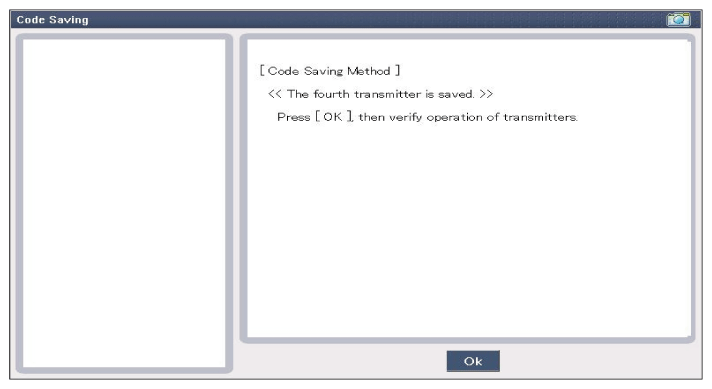

Fig 11: Scantool Display - Code Saving Method (Fourth Transmitter Saved)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Scantool Display - Message (Pushing Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA
