Signal Circuit Inspection

■ Check short to ground in harness

1. IG "OFF" and disconnect ETC Motor & TPS connector and PCM connector.
2. Measure resistance between TPS2 signal terminal of ETC Motor & TPS harness connector and chassis ground. (Measurement "A")
3. Measure resistance between TPS2 signal and TPS ground terminals of ETC Motor & TPS harness connector. (Measurement "B")

   Specification:  Infinite

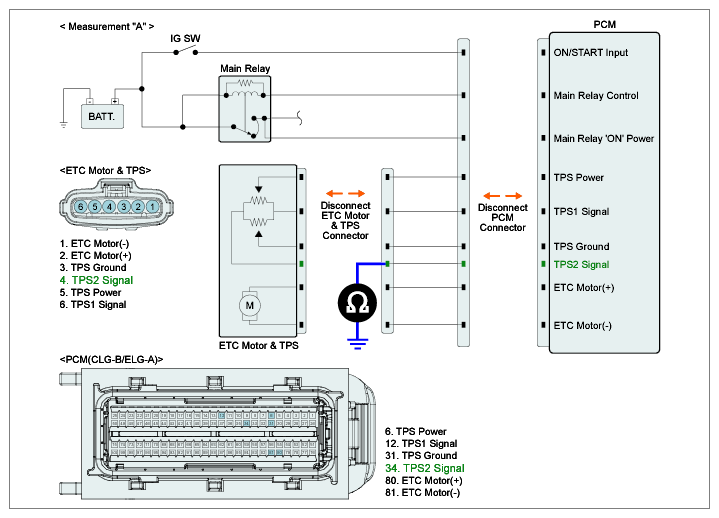

   Fig 1: Measuring Resistance Between TPS2 Signal Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground (Measurement A)

   Courtesy of HYUNDAI MOTOR AMERICA

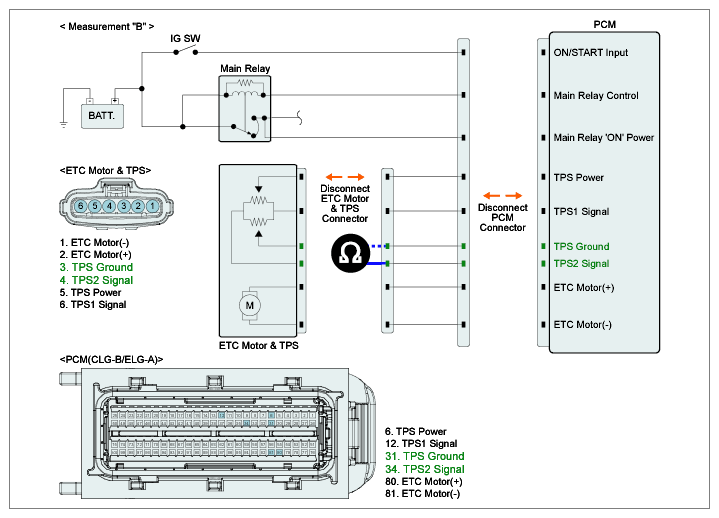

   Fig 2: Measuring Resistance Between TPS2 Signal And TPS Ground Terminals Of ETC Motor & TPS Harness Connector (Measurement B)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Go to "Check open in harness" as follows.

   NO

   • Repair short to ground in harness and go to "Verification of Vehicle Repair " procedure.

■ Check open in harness

1. IG "OFF" and disconnect ETC Motor & TPS connector and PCM connector.
2. Measure resistance between TPS2 signal terminal of ETC Motor & TPS harness connector and TPS2 signal terminal of PCM harness connector.

   Specification:  Below 1 Ω

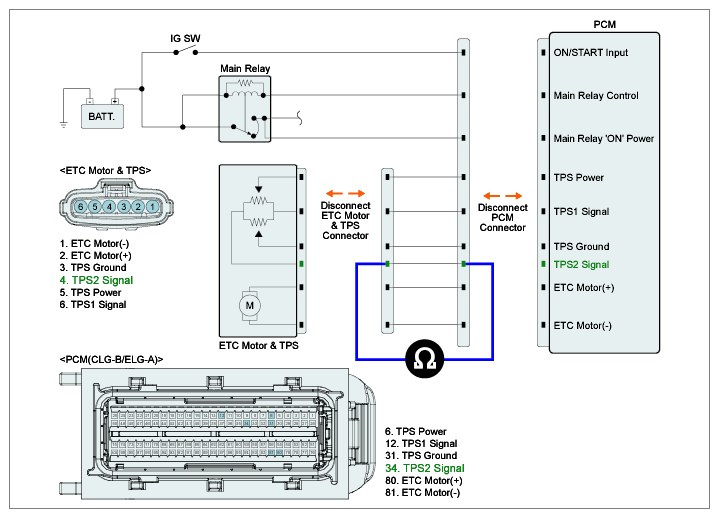

   Fig 3: Measuring Resistance Between TPS2 Signal Terminal Of ETC Motor & TPS Harness Connector And TPS2 Signal Terminal Of PCM Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Component Inspection  " procedure below.

   NO

   • Repair open in harness, and go to "Verification of Vehicle Repair " procedure.
