Monitor Scantool Data
- Ignition "OFF", connect scantool.

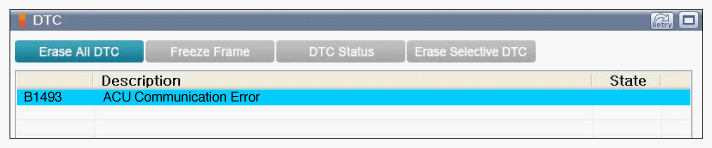

- Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
- Monitor diagnostic trouble code and present of trouble code.
- Using a scan tool, clear the DTC.
- Is DTC present problem?
YES
- Go to "W/HARNESS INSPECTION " procedure.
NO
- Intermittent failure, system is OK at this moment. Do not change Passenger side PODS-F sensor Mat & ECU.
- Fault is intermittent caused by poor contact in the connector/wiring harness or was repaired and Passenger side PODS-F sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
