CAN Communication Line Inspection

1. Connect SRSCM and Passenger side PODS-F sensor Mat & ECU connector.
2. IG KEY ON.
3. Measure signal waveform between C-CAN HIGH terminal and C-CAN LOW terminal of SRSCM connector.

   Specification:  Refer to Signal Waveform And Data

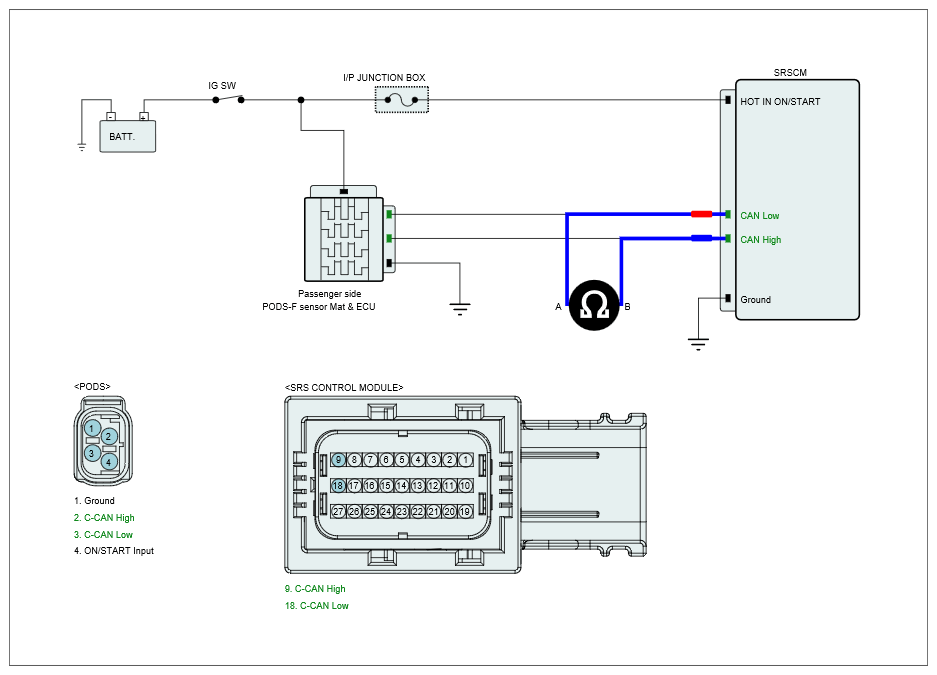

   Fig 1: Measuring Signal Waveform Between C-CAN High Terminal And C-CAN Low Terminal Of SRSCM Connector

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured signal waveform normal?

   YES

   • Substitute the Passenger side PODS-F sensor Mat & ECU main harness and check for proper operation.

     If the problem is corrected, and replace Passenger side PODS-F sensor Mat & ECU main harness and then go to "Verification Of Vehicle Repair " procedure and Using a scan tool, clear the DTC.

   • Go to "PODS RESET " procedure.

   NO

   • Substitute the SRSCM main harness or Passenger side PODS-F sensor Mat & ECU or SRSCM and check for proper operation.

If the problem is corrected, replace SRSCM main harness Passenger side PODS-F sensor Mat & ECU or SRSCM and then go to "Verification of Vehicle Repair " procedure.
