Parking Brake Warning
If driver drives the vehicle with parking brake engaged or not completely released, and vehicle speed exceeds the specific value of 5 km/h (3 MPH), a sound warning reminds the driver that parking brake has to be released.

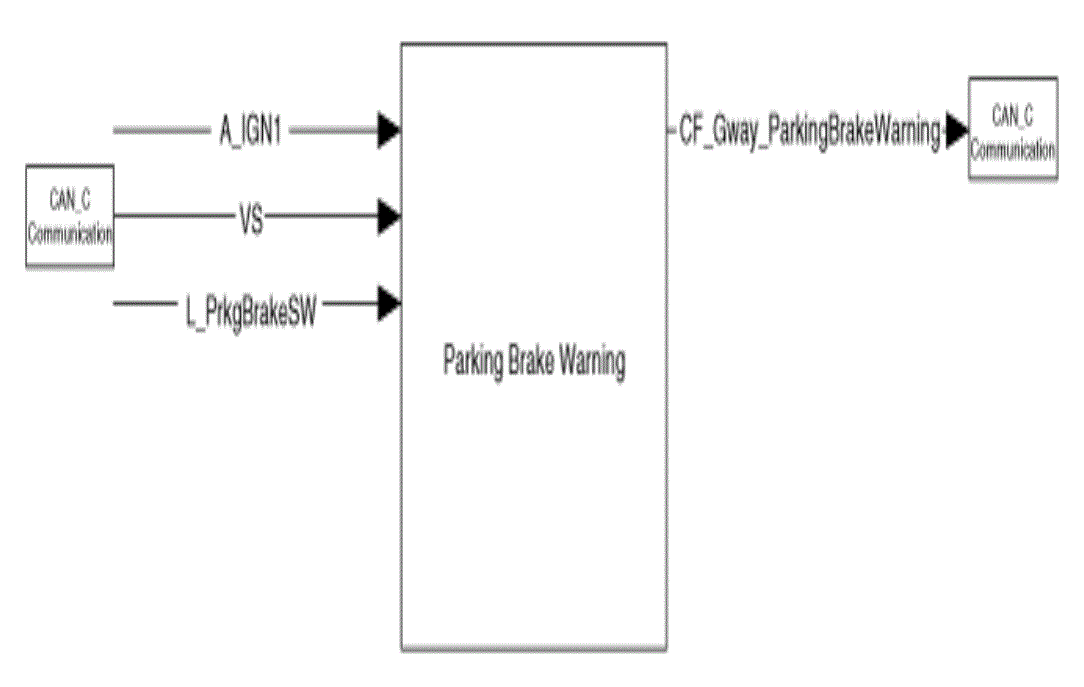

| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_PrkgBrakeSW | Parking Brake Switch |
| Analog | A_IGN1 | Ignition 1 Signal | |
| CAN_C Communication | VS | Vehicle Speed Signal | |
| Internal | Timer_ParkBrake | Vehicle Speed Conformation Timer for Parking Brake Warning | |
| Output | CAN_C Communication | CF_Gway_ParkingBrakeWarning | Internal Warning Buzzer command for Parking Brake Warning |
