Signal Waveform & Data

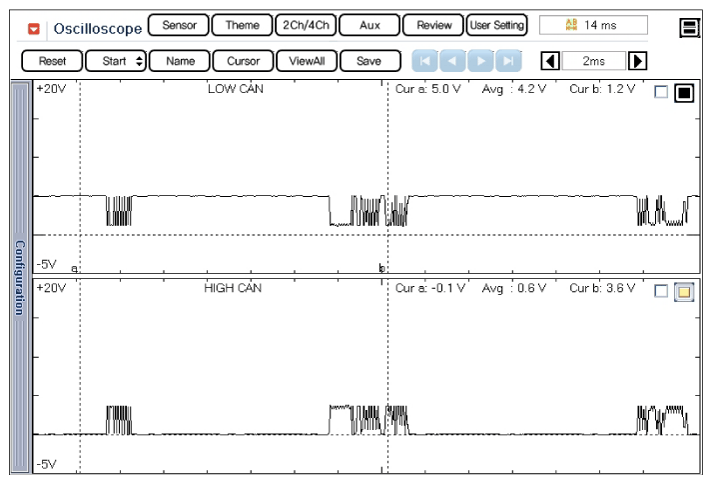

Fig 1: Screen Display - CAN Low/High Signal Waveform
G12084848Courtesy of HYUNDAI MOTOR AMERICA

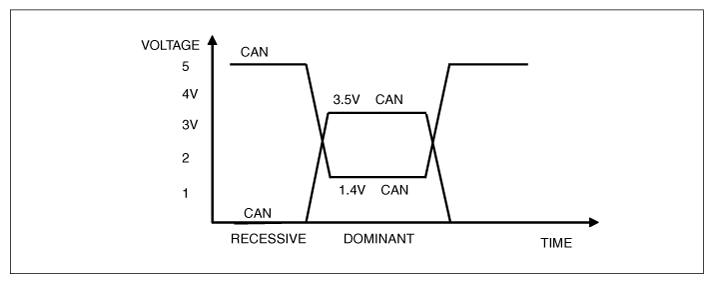

Fig 2: CAN Bus Voltage Level (Low Speed CAN)
G12084849Courtesy of HYUNDAI MOTOR AMERICA
