Signal Waveform & Data

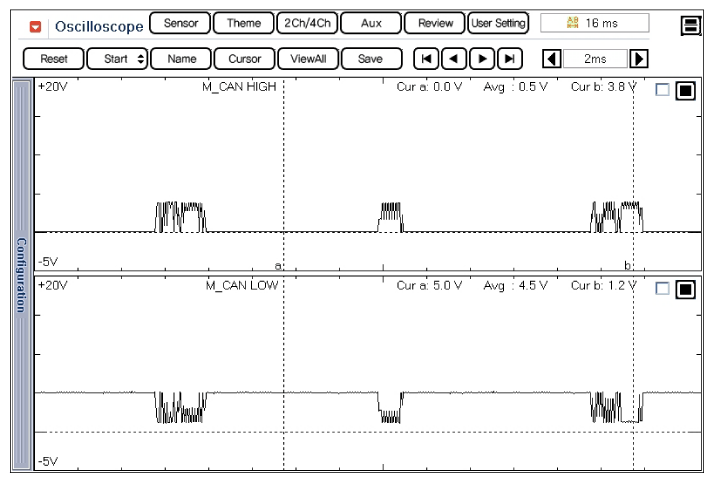

Fig 1: Screen Display - MM CAN Low/High Signal Waveform
G12084861Courtesy of HYUNDAI MOTOR AMERICA

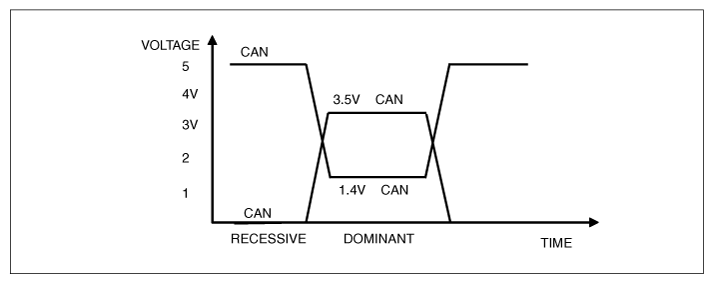

Fig 2: MM CAN Bus Voltage Level (Low Speed CAN)
G12084862Courtesy of HYUNDAI MOTOR AMERICA
