Signal Waveform & Data

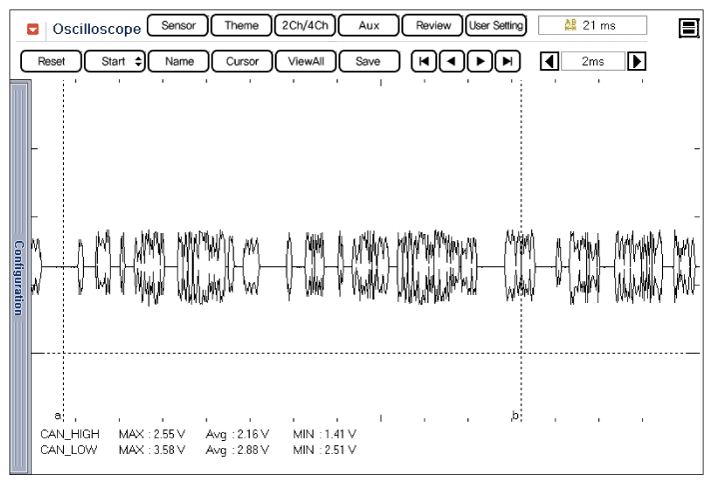

Fig 1: Screen Display - C-CAN Low/High Signal Waveform
G12085019Courtesy of HYUNDAI MOTOR AMERICA

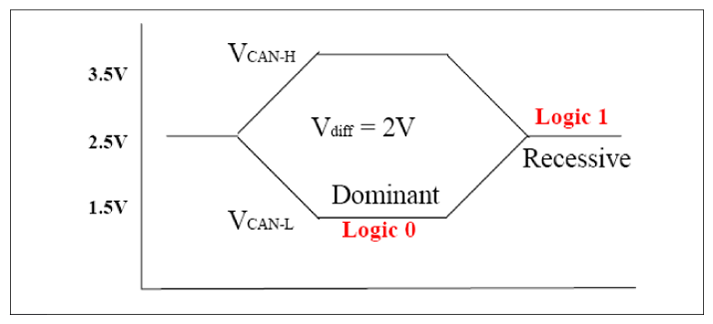

Fig 2: C-CAN Bus Voltage Level (High Speed CAN)
G12085020Courtesy of HYUNDAI MOTOR AMERICA
