Circuit Diagram

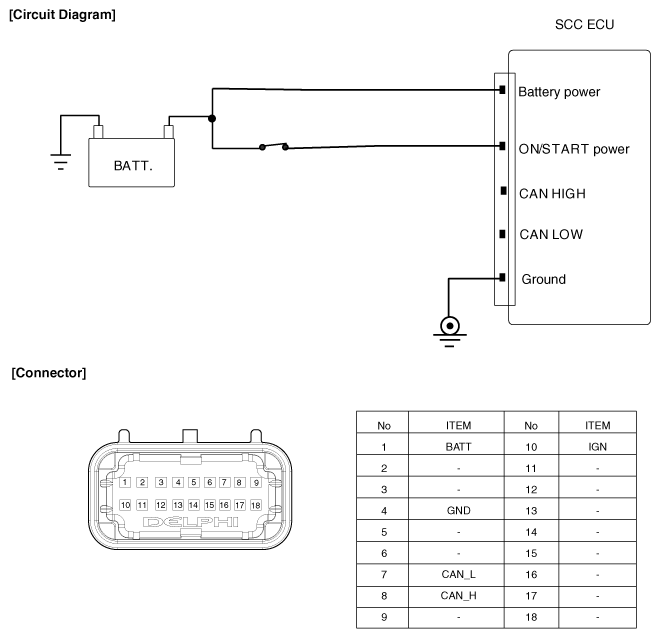

Fig 1: Smart Cruise Control Unit Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
