Components And Components Location: Components

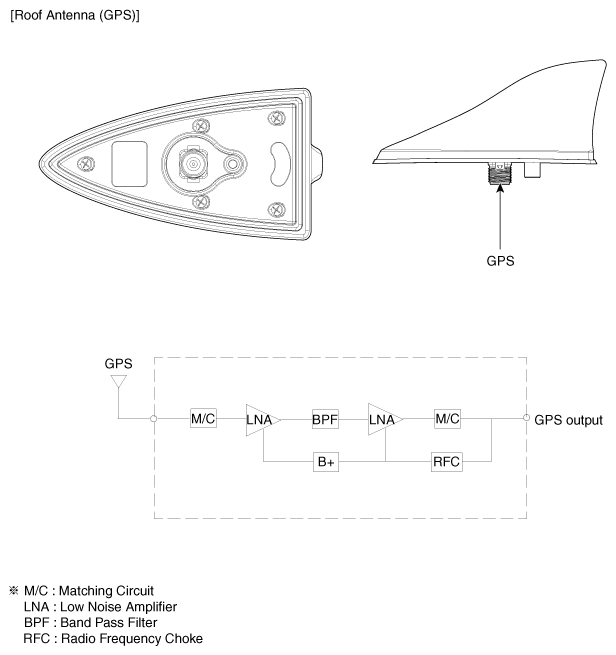

Fig 1: Roof Antenna Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
