Body Repair

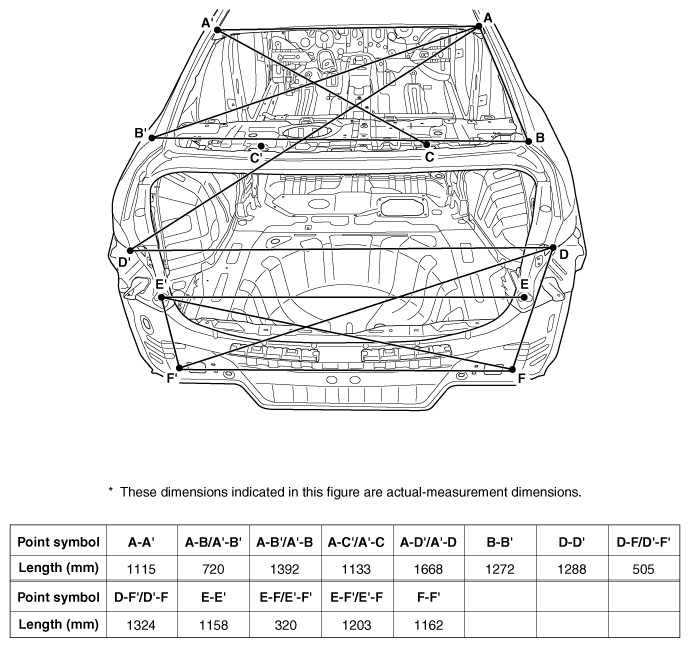

Fig 1: Rear Body Measurement Points
G12091219Courtesy of HYUNDAI MOTOR AMERICA

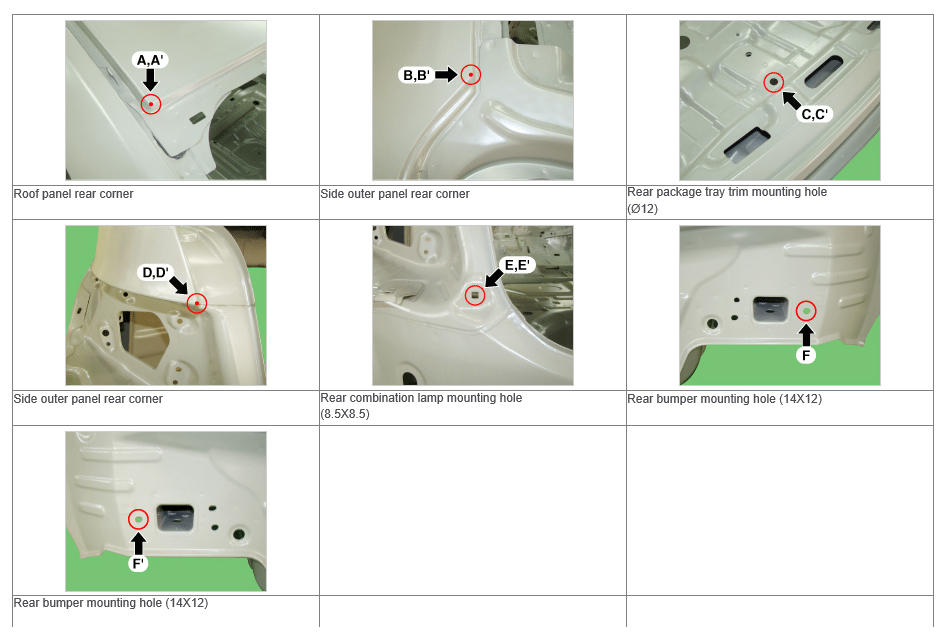

Fig 2: Locating Rear Body Mounting Holes
G12091220Courtesy of HYUNDAI MOTOR AMERICA
