Components And Components Location: Components(2)

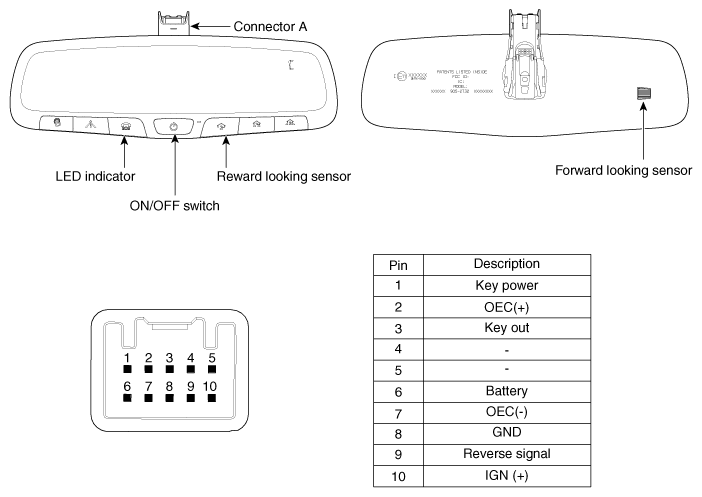

Fig 1: Electro Chromic Inside Rear View Mirror Connector Description Chart (2)
G12093128Courtesy of HYUNDAI MOTOR AMERICA
