Components And Components Location: Component

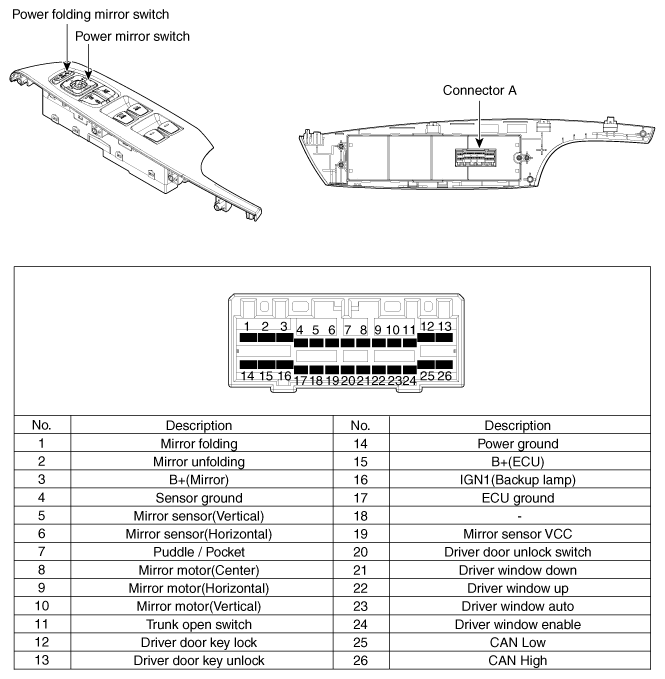

Fig 1: Power Out Side Mirror Switch Components

G12093019

Courtesy of HYUNDAI MOTOR AMERICA
