Input/Output Specification

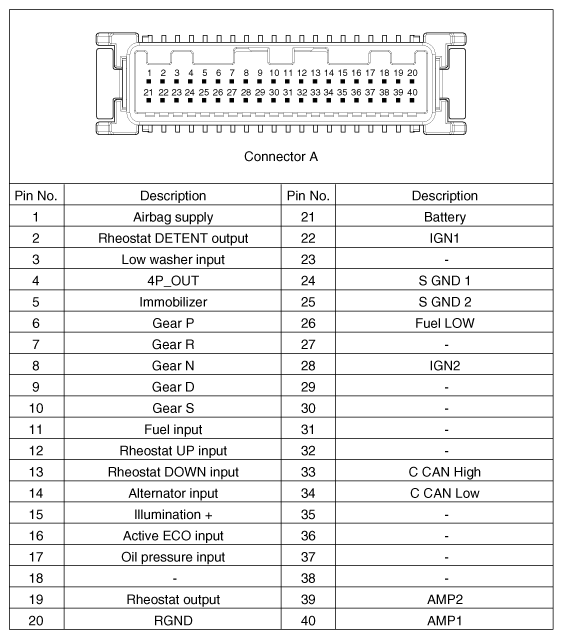

Fig 1: Instrument Cluster Connector Terminals (Input/Output)
G12092982Courtesy of HYUNDAI MOTOR AMERICA
