Components And Components Location: Components

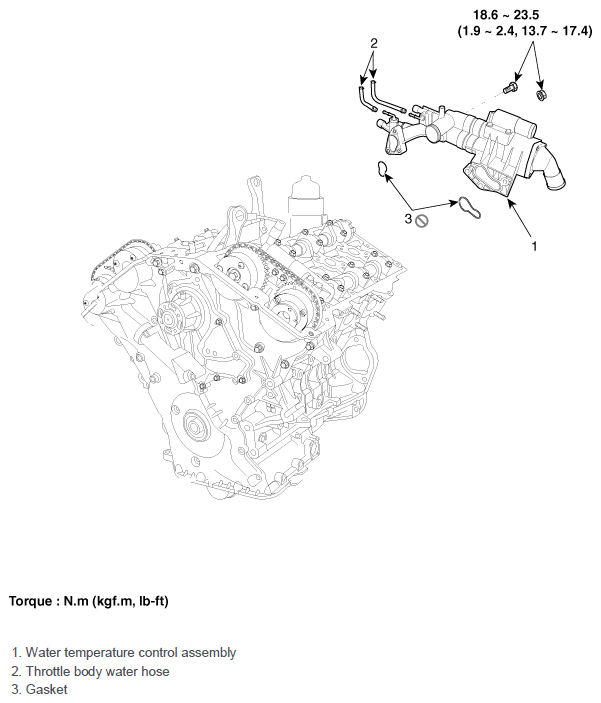

Fig 1: Water Temperature Control Assembly Components With Torque Specification
G12087006Courtesy of HYUNDAI MOTOR AMERICA
