Ems (Engine Management System) Identification

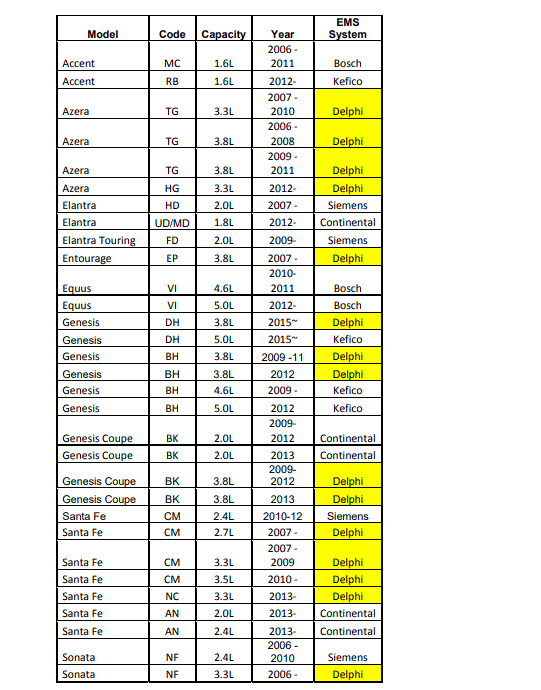

Fig 1: EMS Identification (1 Of 2)
G00634879Courtesy of HYUNDAI MOTOR CO.

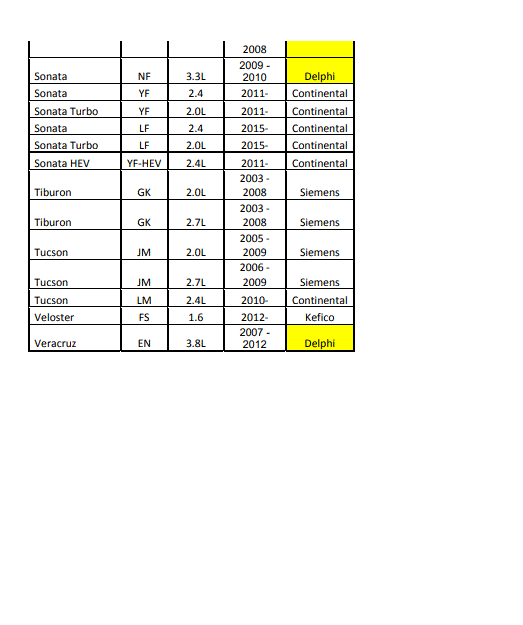

Fig 2: EMS Identification (2 Of 2)
G00634880Courtesy of HYUNDAI MOTOR CO.
