Mode $06 Data For Siemens 652 KWP

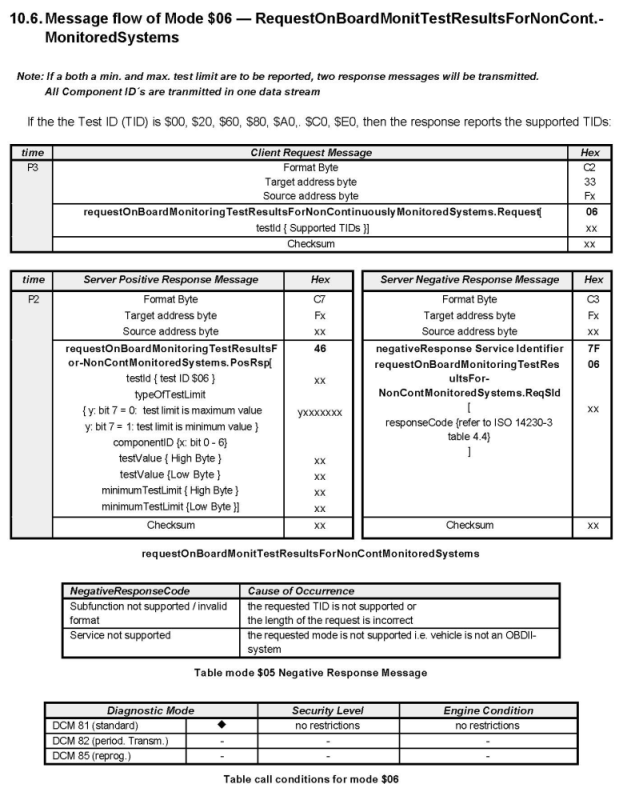

Fig 1: Mode $06 Test Information (1 Of 25)

G00518281

Courtesy of HYUNDAI MOTOR CO.

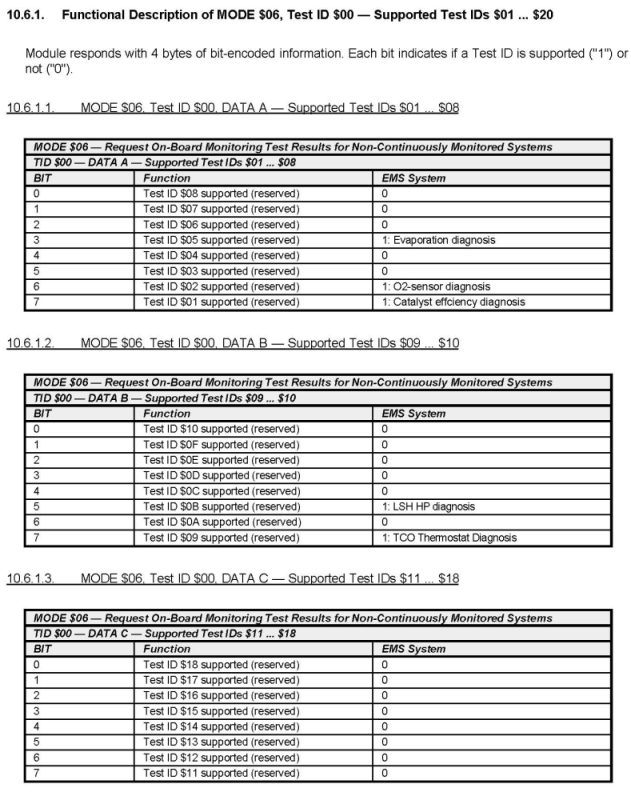

Fig 2: Mode $06 Test Information (2 Of 25)

G00518282

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Mode $06 Test Information (3 Of 25)

G00508283

Courtesy of HYUNDAI MOTOR CO.

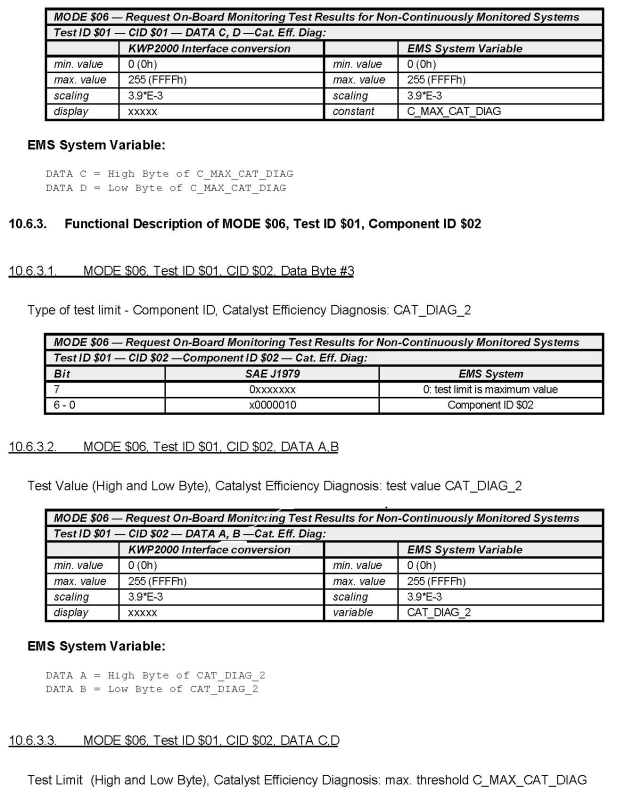

Fig 4: Mode $06 Test Information (4 Of 25)

G00518284

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Mode $06 Test Information (5 Of 25)

G00518285

Courtesy of HYUNDAI MOTOR CO.

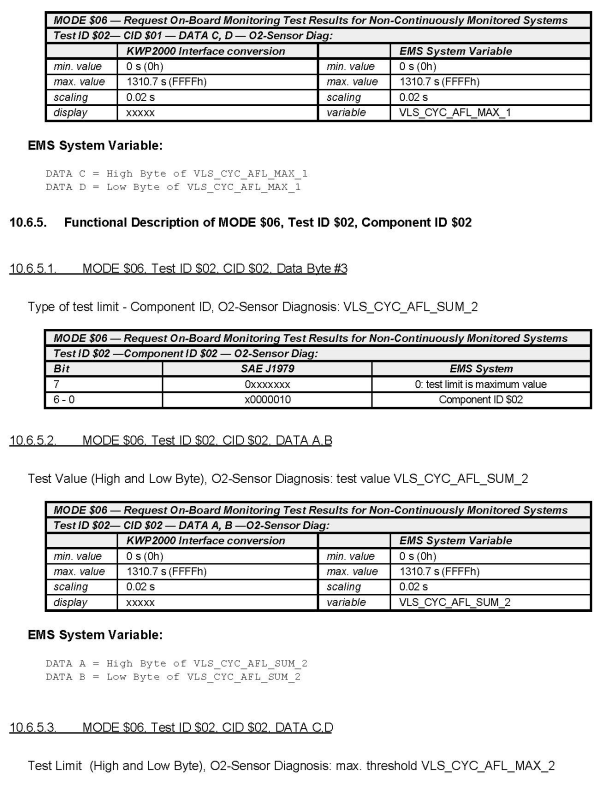

Fig 6: Mode $06 Test Information (6 Of 25)

G00518286

Courtesy of HYUNDAI MOTOR CO.

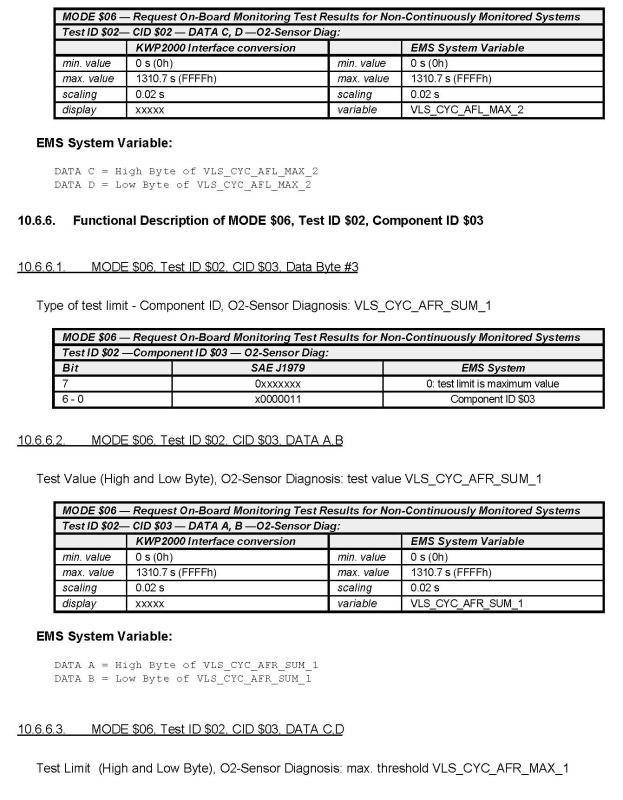

Fig 7: Mode $06 Test Information (7 Of 25)

G00518287

Courtesy of HYUNDAI MOTOR CO.

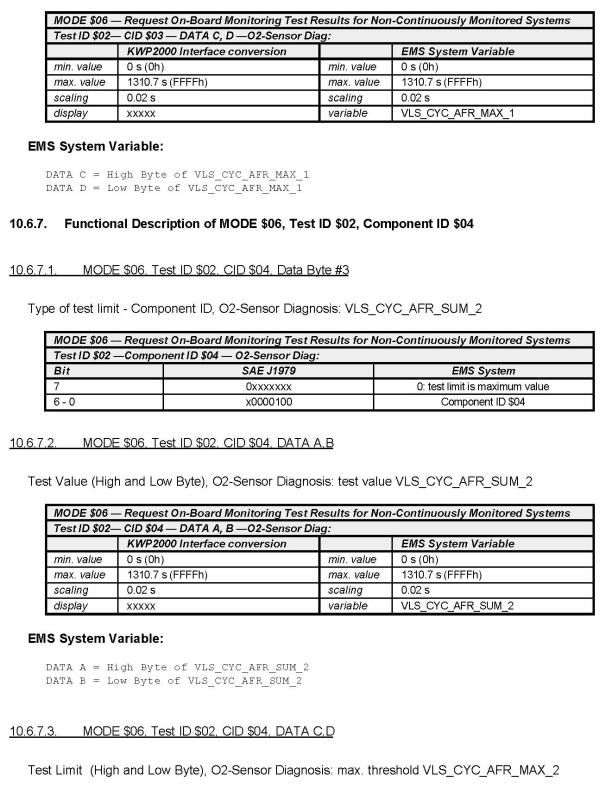

Fig 8: Mode $06 Test Information (8 Of 25)

G00518288

Courtesy of HYUNDAI MOTOR CO.

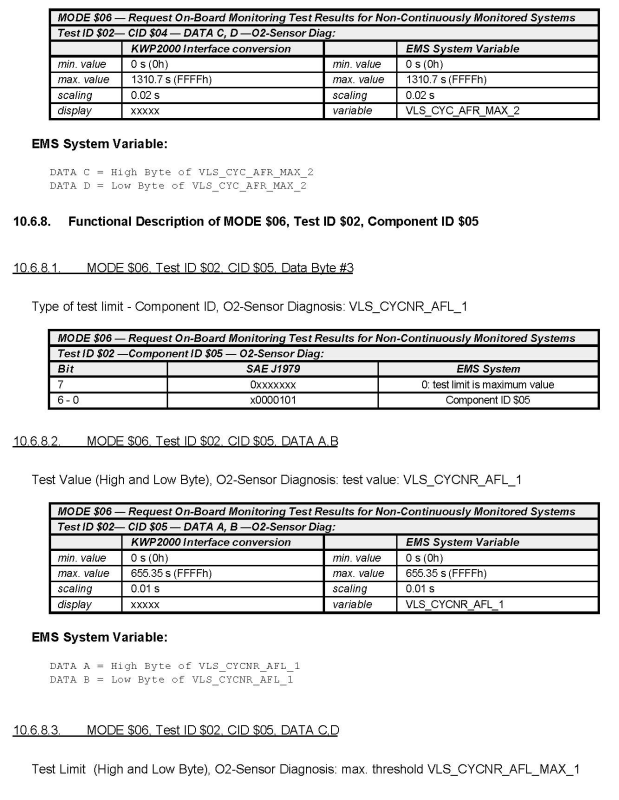

Fig 9: Mode $06 Test Information (9 Of 25)

G00518289

Courtesy of HYUNDAI MOTOR CO.

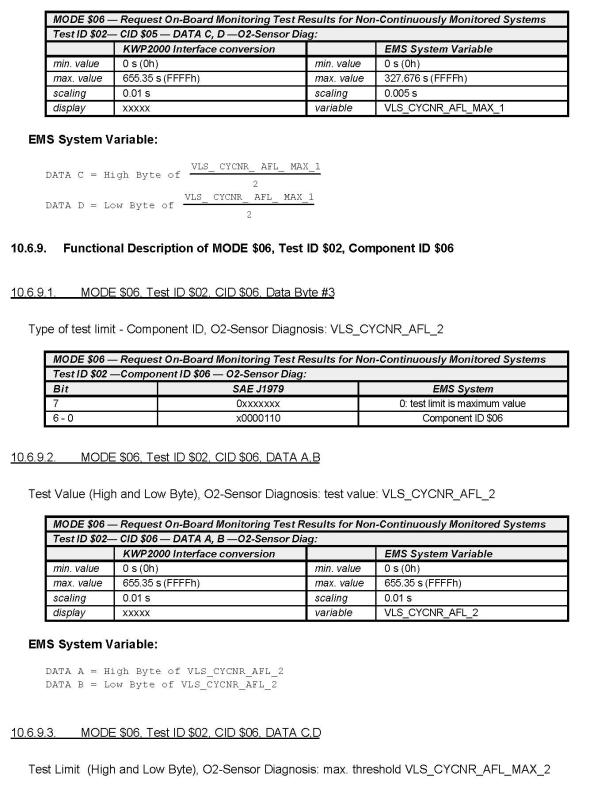

Fig 10: Mode $06 Test Information (10 Of 25)

G00518290

Courtesy of HYUNDAI MOTOR CO.

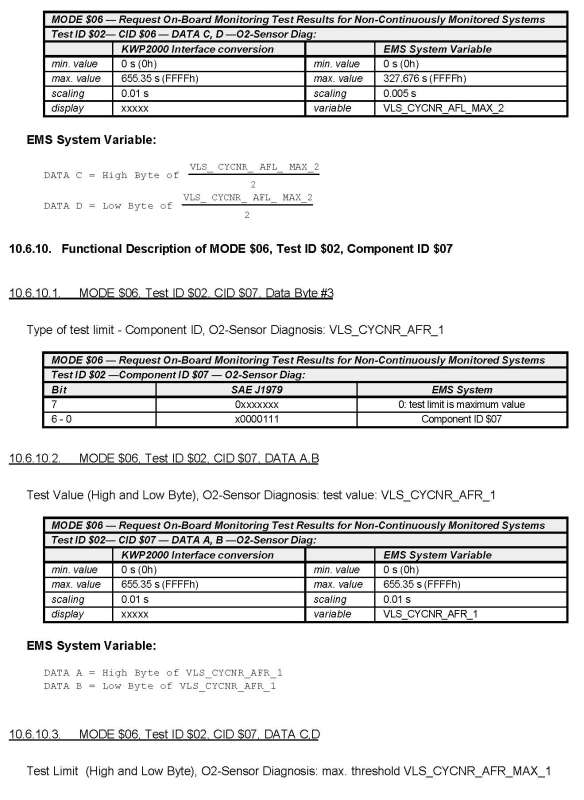

Fig 11: Mode $06 Test Information (11 Of 25)

G00518291

Courtesy of HYUNDAI MOTOR CO.

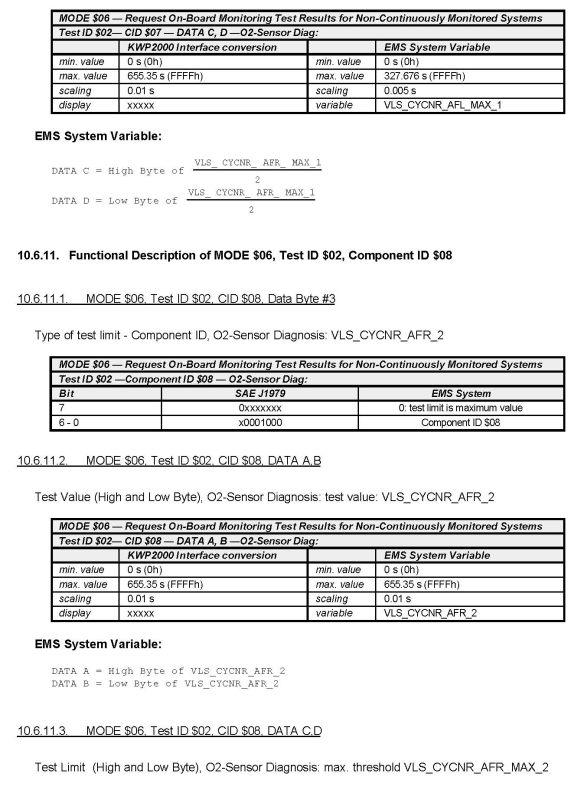

Fig 12: Mode $06 Test Information (12 Of 25)

G00518292

Courtesy of HYUNDAI MOTOR CO.

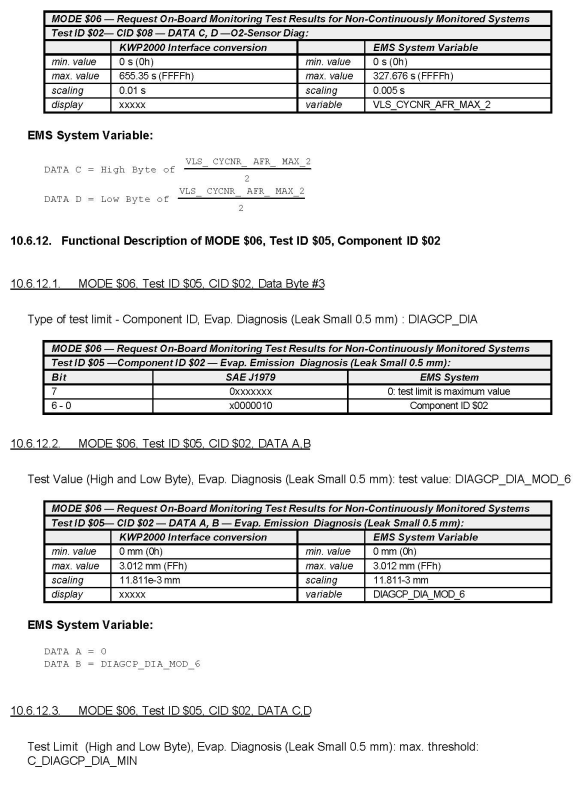

Fig 13: Mode $06 Test Information (13 Of 25)

G00518293

Courtesy of HYUNDAI MOTOR CO.

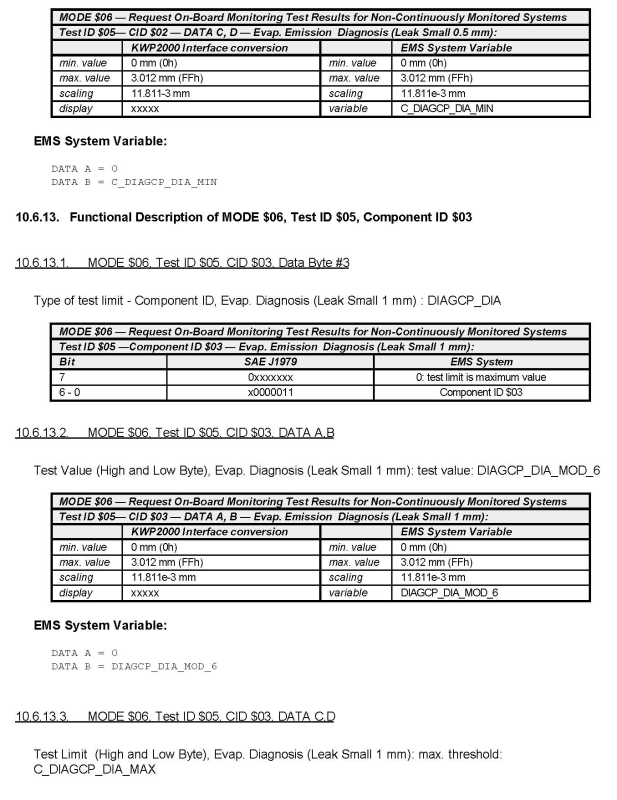

Fig 14: Mode $06 Test Information (14 Of 25)

G00518294

Courtesy of HYUNDAI MOTOR CO.

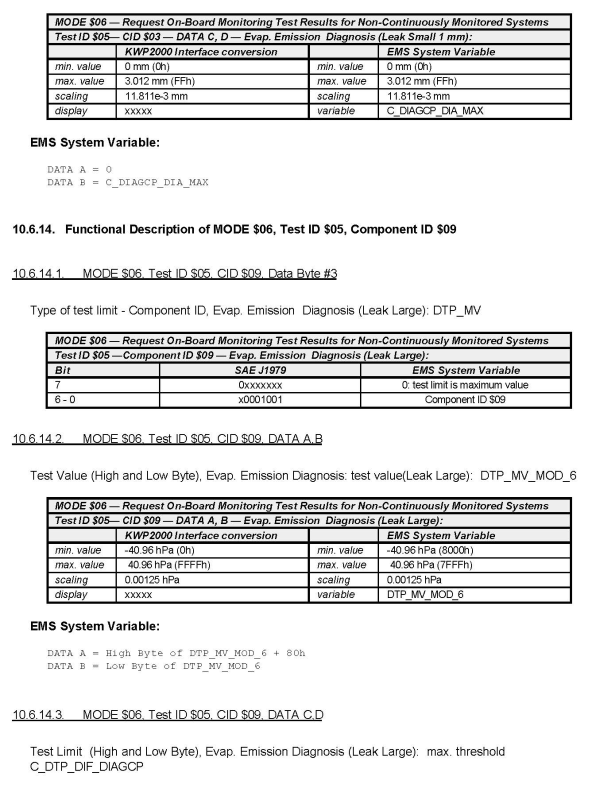

Fig 15: Mode $06 Test Information (15 Of 25)

G00518295

Courtesy of HYUNDAI MOTOR CO.

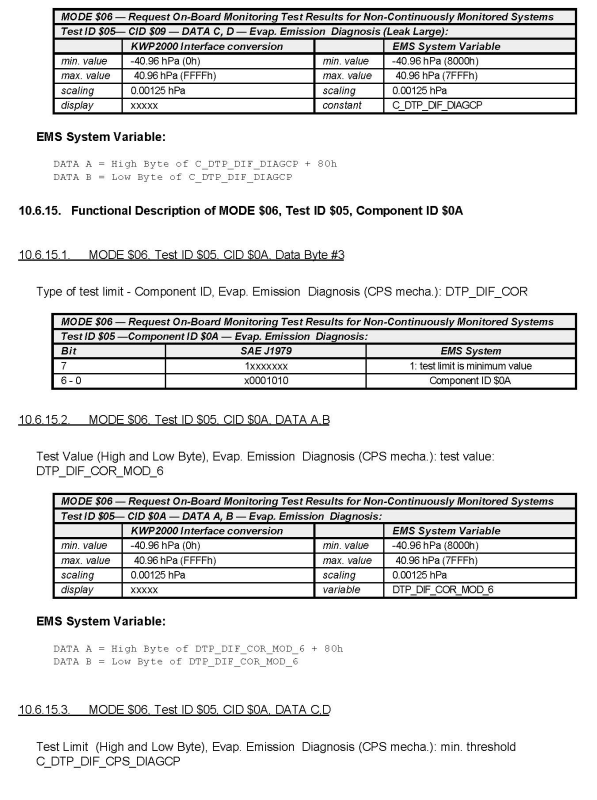

Fig 16: Mode $06 Test Information (16 Of 25)

G00518296

Courtesy of HYUNDAI MOTOR CO.

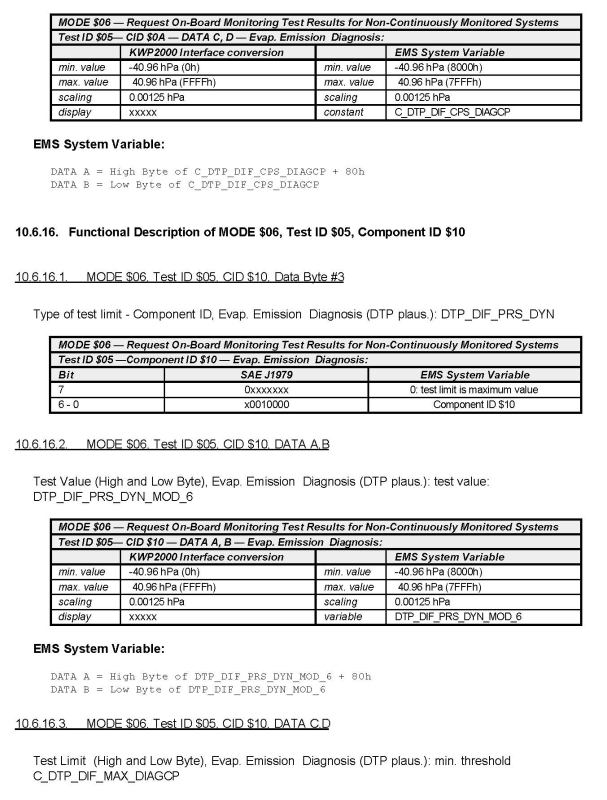

Fig 17: Mode $06 Test Information (17 Of 25)

G00518297

Courtesy of HYUNDAI MOTOR CO.

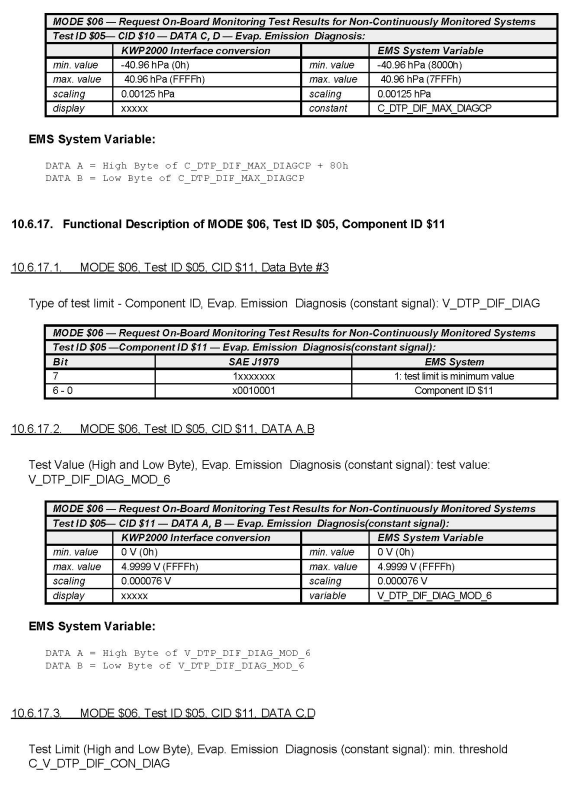

Fig 18: Mode $06 Test Information (18 Of 25)

G00518298

Courtesy of HYUNDAI MOTOR CO.

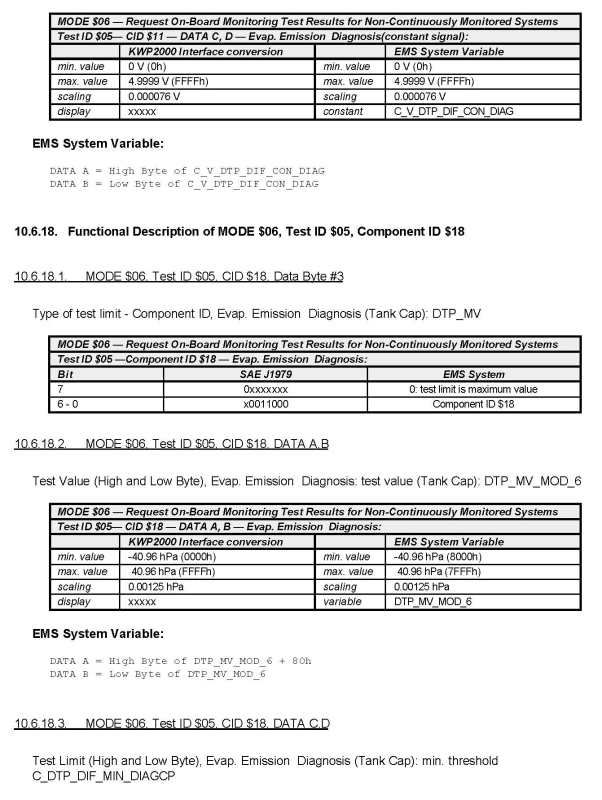

Fig 19: Mode $06 Test Information (19 Of 25)

G00518299

Courtesy of HYUNDAI MOTOR CO.

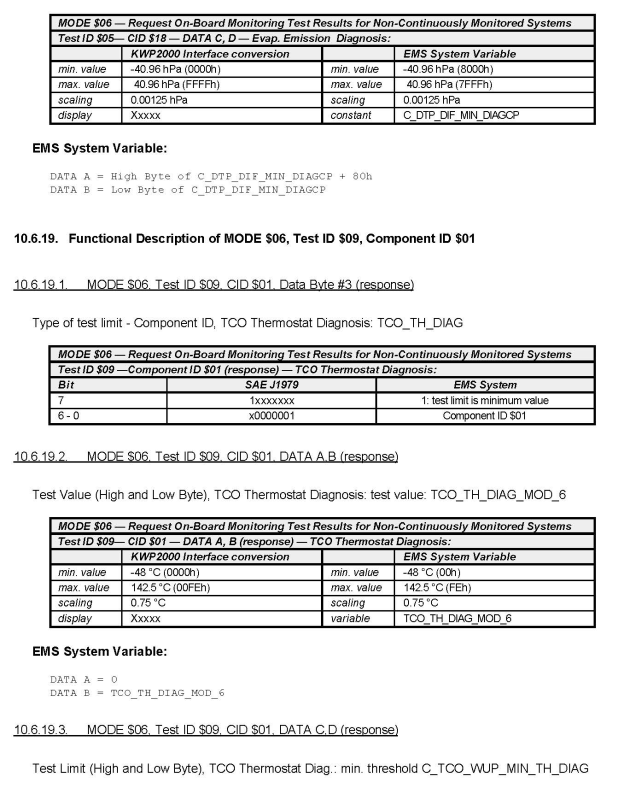

Fig 20: Mode $06 Test Information (20 Of 25)

G00518300

Courtesy of HYUNDAI MOTOR CO.

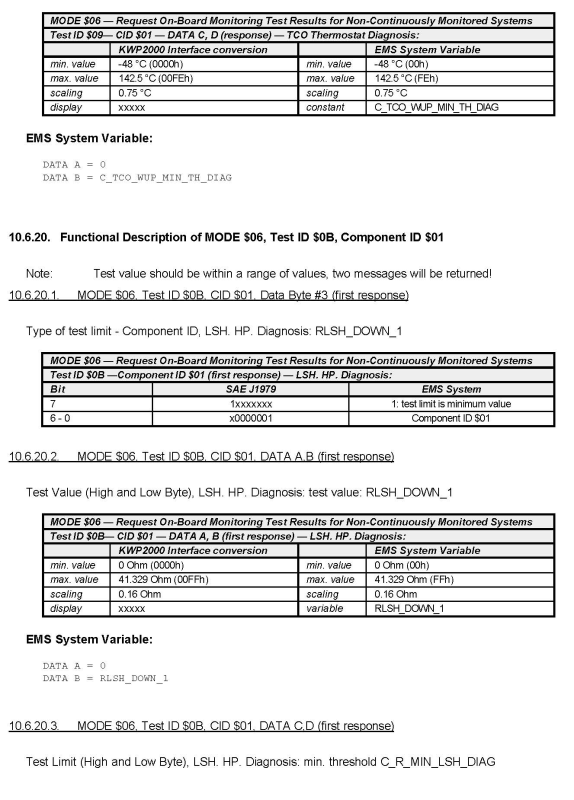

Fig 21: Mode $06 Test Information (21 Of 25)

G00518301

Courtesy of HYUNDAI MOTOR CO.

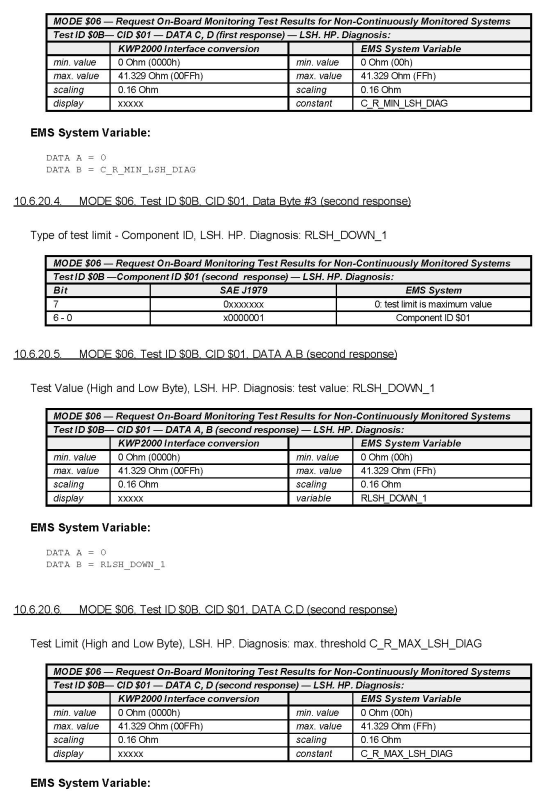

Fig 22: Mode $06 Test Information (22 Of 25)

G00518302

Courtesy of HYUNDAI MOTOR CO.

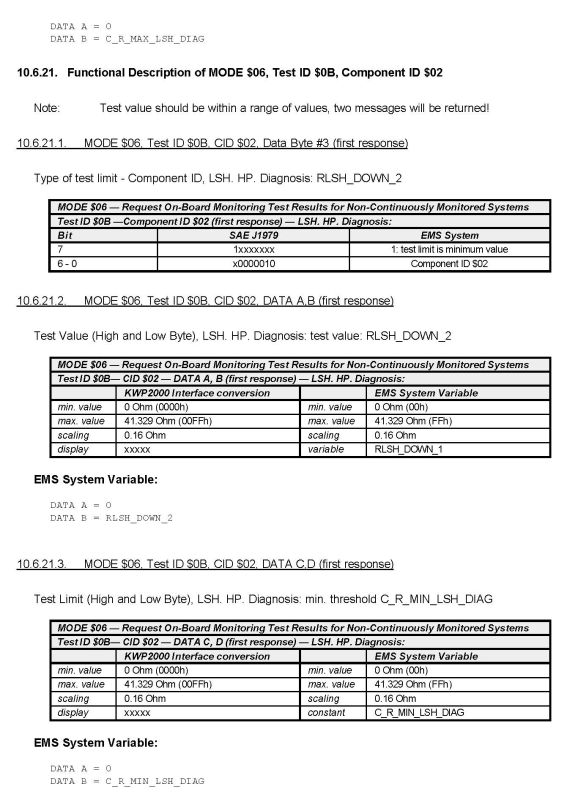

Fig 23: Mode $06 Test Information (23 Of 25)

G00518303

Courtesy of HYUNDAI MOTOR CO.

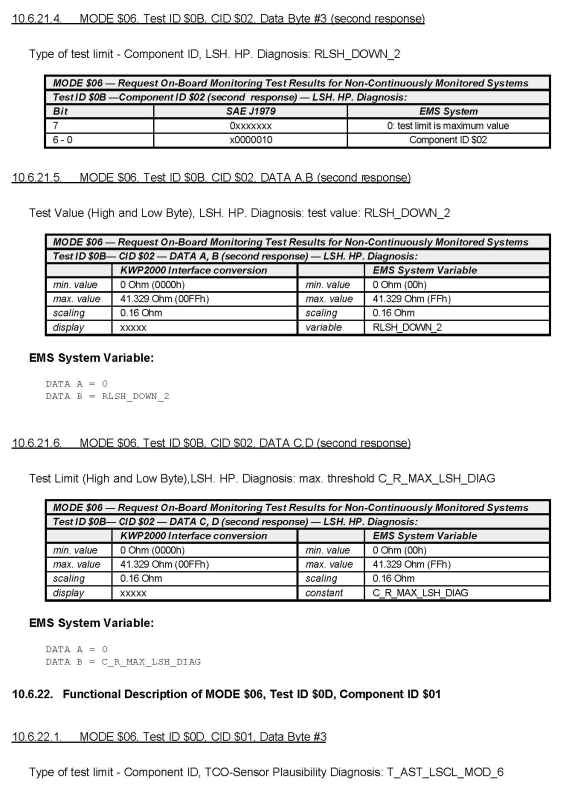

Fig 24: Mode $06 Test Information (24 Of 25)

G00518304

Courtesy of HYUNDAI MOTOR CO.

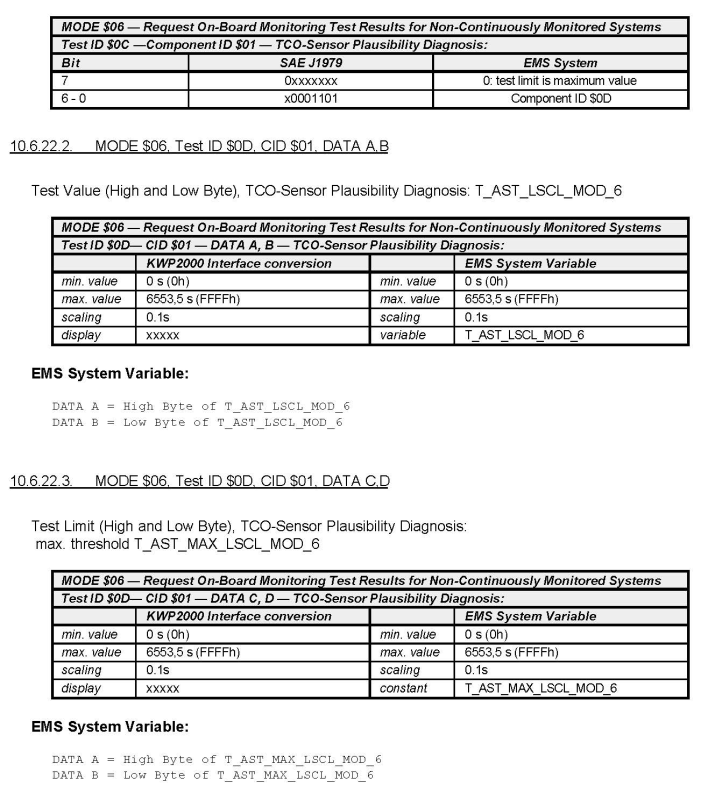

Fig 25: Mode $06 Test Information (25 Of 25)

G00518305

Courtesy of HYUNDAI MOTOR CO.
