Control Circuit Inspection

■ Check short to ground

1. IG "OFF" & Disconnect HO2S (B1/S1) connector.
2. Measure resistance between control terminal of HO2S (B1/S1) heater harness connector and chassis ground.

   Specification:  Infinite

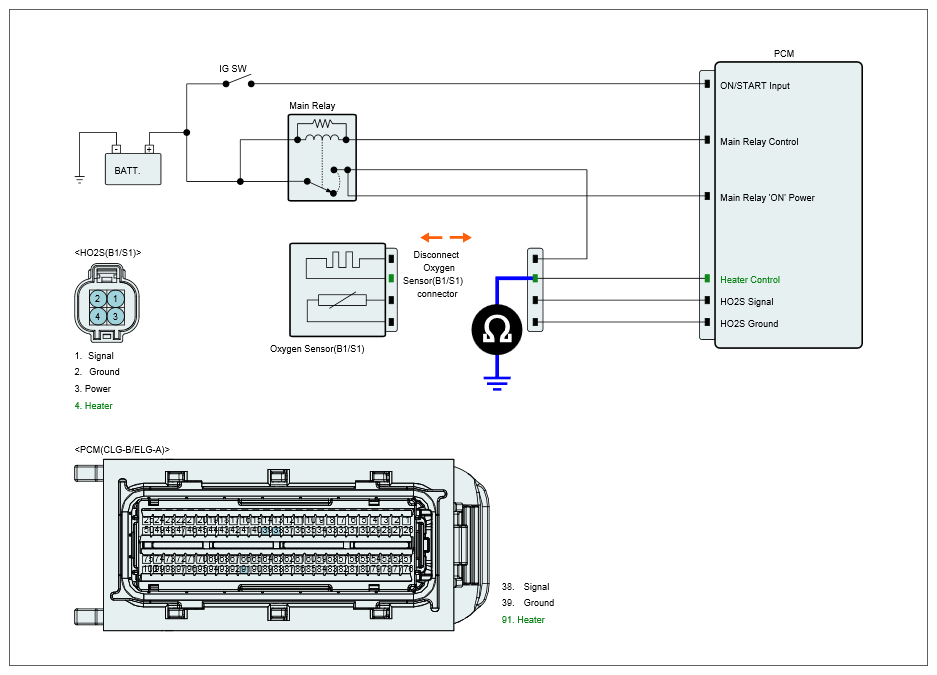

   Fig 1: Measuring Resistance Between Control Terminal Of HO2S (B1/S1) Heater Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Component Inspection  " procedure below.

   NO

   • Repair short to ground in HO2S (B1/S1) heater control circuit and go to "Verification of Vehicle Repair " procedure.

■ Check open in harness

1. IG "OFF" and disconnect HO2S (B1/S1) and PCM connector.
2. Measure resistance between control terminal of HO2S (B1/S1) heater harness connector and heater control terminal of PCM harness connector.

   Specification:  Approx. below 1 Ω

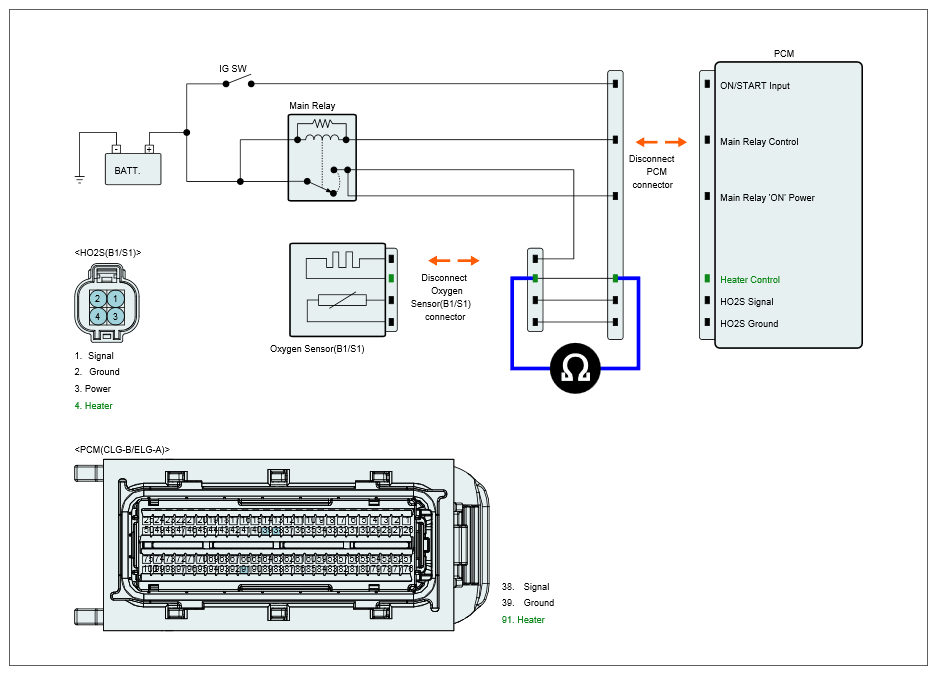

   Fig 2: Measuring Resistance Between Control Terminal Of HO2S (B1/S1) Heater Harness Connector And Heater Control Terminal Of PCM Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Component Inspection " procedure below.

   NO

   • Repair open in HO2S (B1/S1) heater control circuit and go to "Verification of Vehicle Repair " procedure.
