Component Inspection

■ Check OCV resistance

1. IG "OFF" and disconnect OCV connector.
2. Measure resistance between power and signal terminals of OCV. (Component Side)

   Specification:  9.4 ~10.4 [20°C (68°F)]

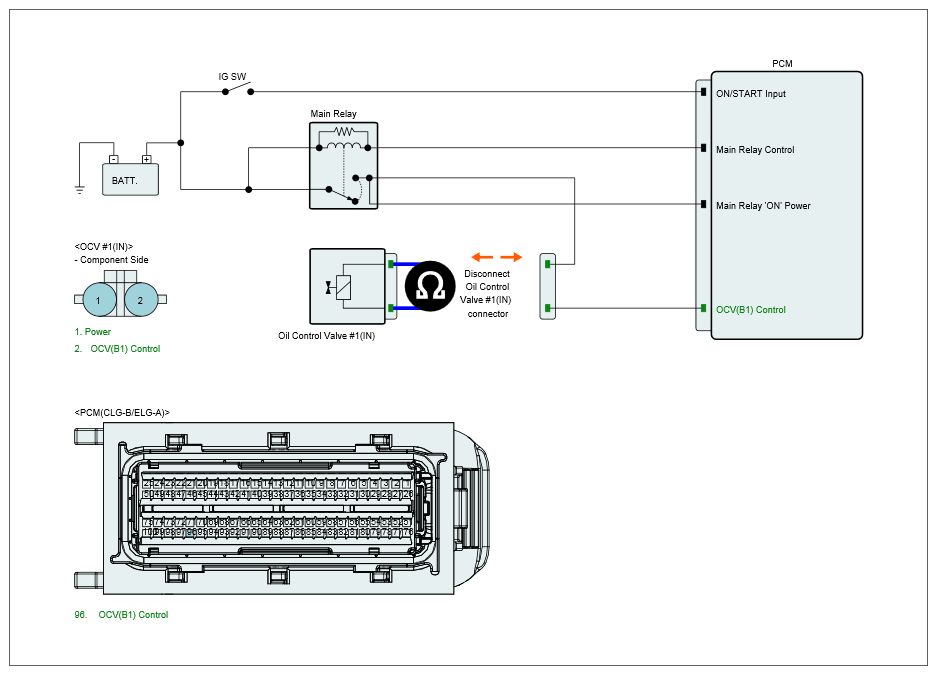

   Fig 1: Measuring Resistance Between Power And Signal Terminals Of OCV (Component Side)

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "OCV Actuation Test" as follows.

   NO

   • Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "Verification of Vehicle Repair " procedure.

■ OCV Actuation Test

1. Connect GDS and IG "ON"
2. Select "OIL CONTROL VALVE" on the Actuation Test
3. Activates "OIL CONTROL VALVE" by pressing "START" button (Should hear a faint click from Oil Control solenoid Valve)
4. Repeat this procedure 4 or 5 times to ensure oil control solenoid valve reliability

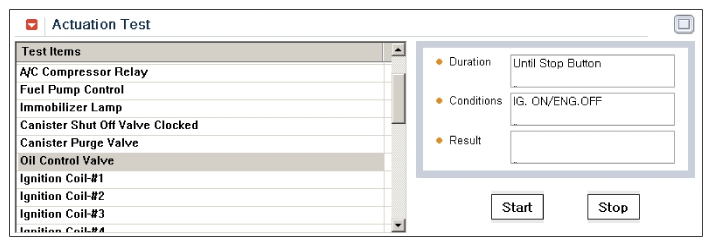

   Fig 2: Selecting Oil Control Valve On Actuation Test

   Courtesy of HYUNDAI MOTOR AMERICA
5. Does OCV generate click sound during acutation test?

   YES

   • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "Verification of Vehicle Repair " procedure.
