Control Circuit Inspection

■ Check short to battery in harness

1. IG "OFF" & Disconnect OCV connector.
2. Measure resistance between power and control terminals of OCV harness connector.

   Specification:  Infinite

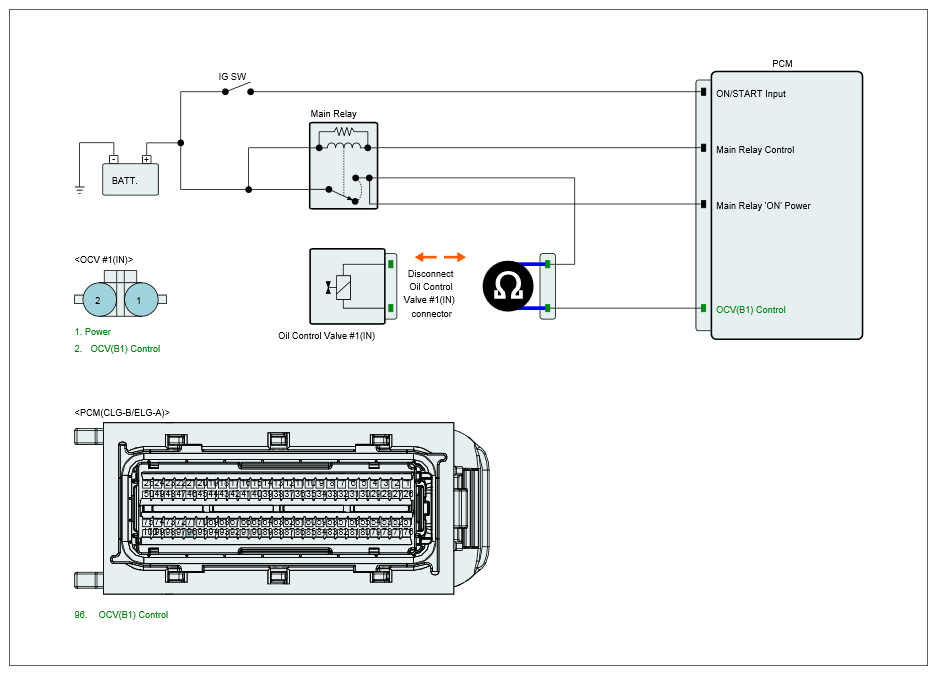

   Fig 1: Measuring Resistance Between Power And Control Terminals Of OCV Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Component Inspection " procedure below.

   NO

   • Repair short to battery in OCV control circuit and go to "Verification of Vehicle Repair " procedure.
