Power Circuit Inspection

■ Check voltage

1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS power terminal of ETC Motor & TPS harness connector and chassis ground.

   Specification:  Approx. 5V

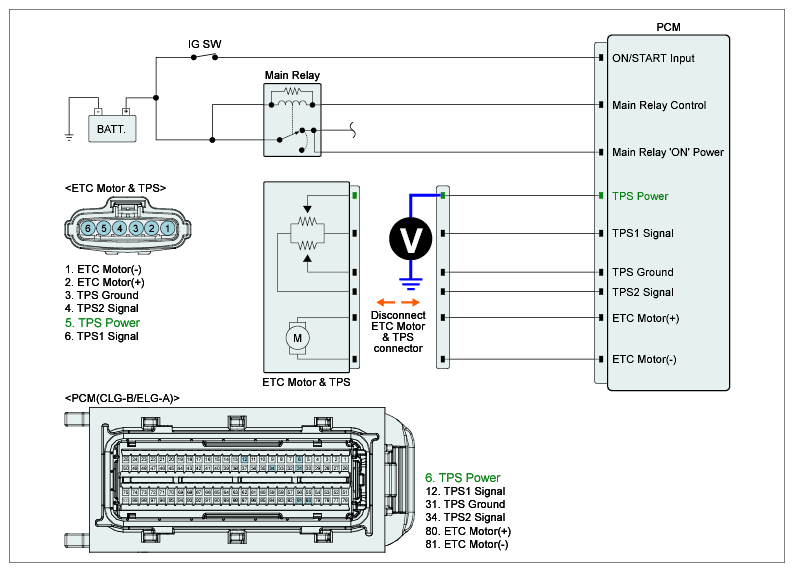

   Fig 1: Measuring Voltage Between TPS Power Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Signal Circuit Inspection " procedure below.

   NO

   • Repair open or short to ground in power harness, and go to "Verification of Vehicle Repair " procedure.
