Ground Circuit Inspection

■ Check open in harness

1. IG "OFF" and disconnect ECTS connector and then IG "ON".
2. Measure voltage between TPS power terminal of ETC Motor & TPS harness connector and chassis ground. (Measurement "A")
3. Measure voltage between TPS power and TPS ground terminals of ETC Motor & TPS harness connector. (Measurement "B")

   Specification:  Voltage difference between measurement "A" and "B" is below 200mV.

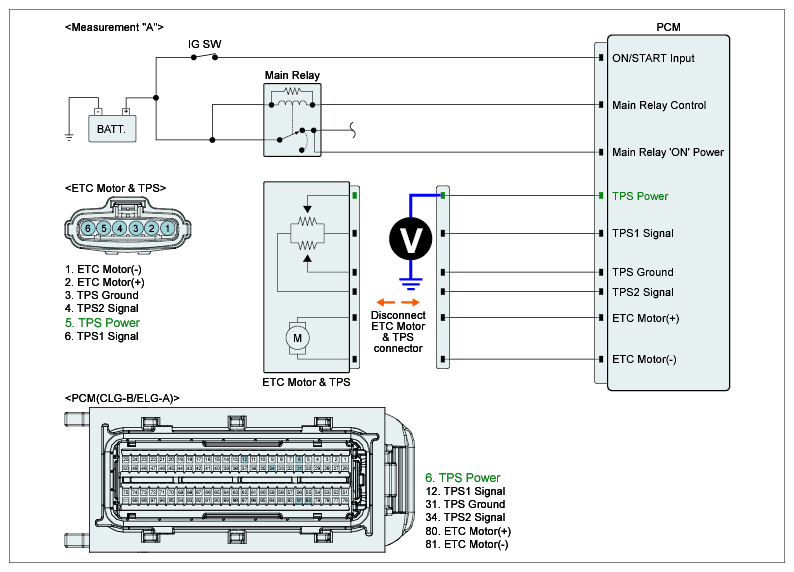

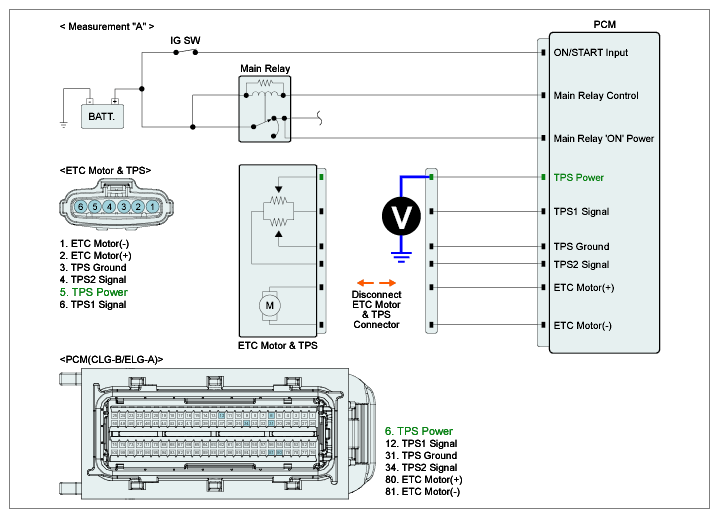

   Fig 1: Measuring Voltage Between TPS Power Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground (Measurement A)

   Courtesy of HYUNDAI MOTOR AMERICA

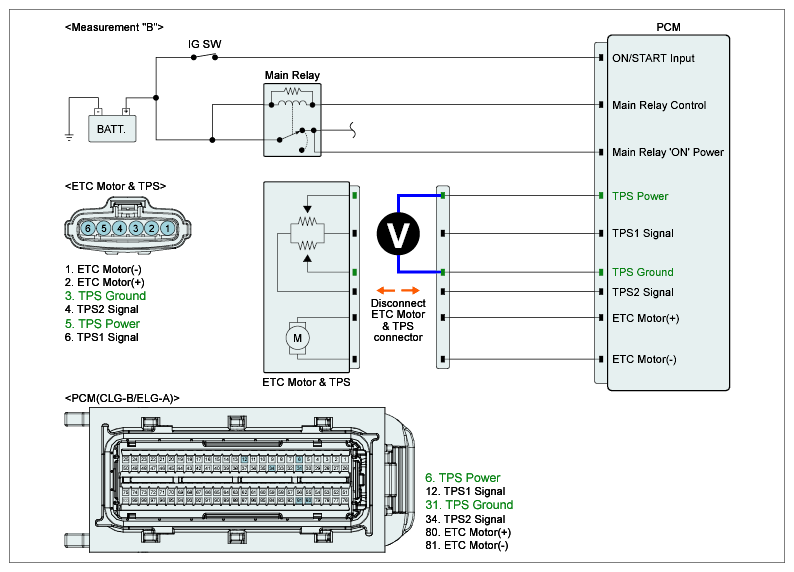

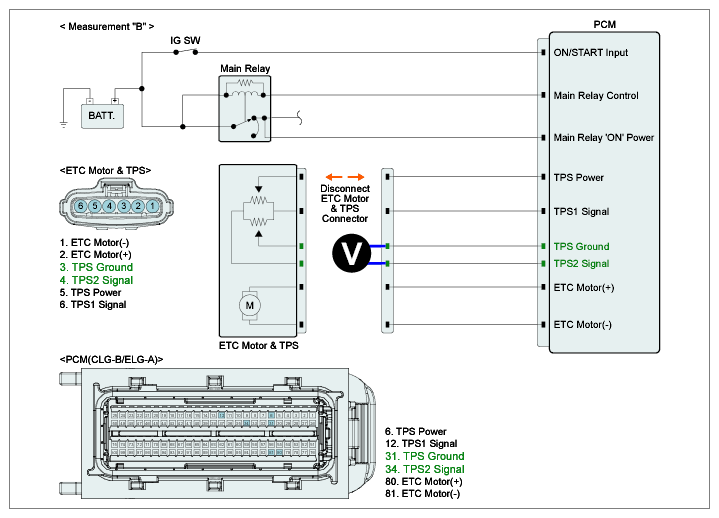

   Fig 2: Measuring Voltage Between TPS Power And TPS Ground Terminals Of ETC Motor & TPS Harness Connector (Measurement B)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Component Inspection " procedure.

   NO

   • Repair contact resistance or open in harness and go to "Verification of Vehicle Repair " procedure.
