Signal Waveform & Data

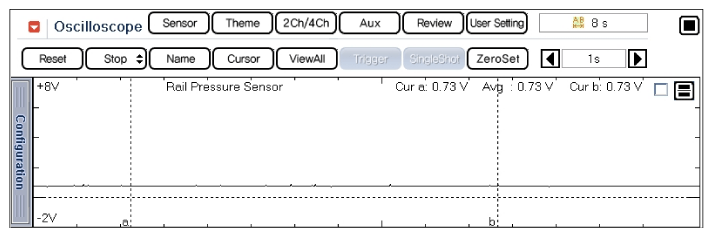

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G12087760Courtesy of HYUNDAI MOTOR AMERICA

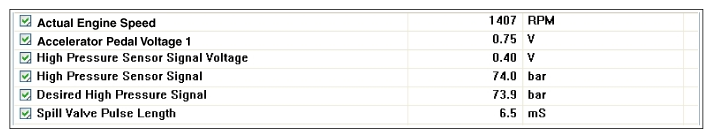

Fig 2: Screen Display - Rail Pressure Sensor
G12087761Courtesy of HYUNDAI MOTOR AMERICA

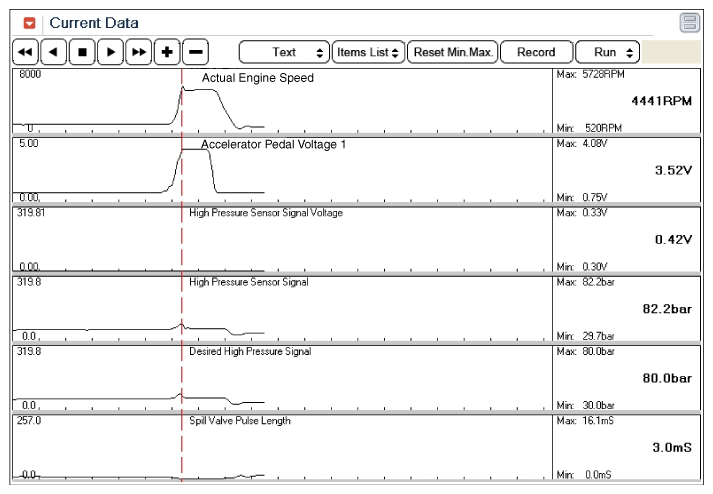

Fig 3: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G12087762Courtesy of HYUNDAI MOTOR AMERICA
