Engine Control System Diagnosis (2 Of 3)
>>
DTC P0222: Throttle Position Sensor 2 Signal Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

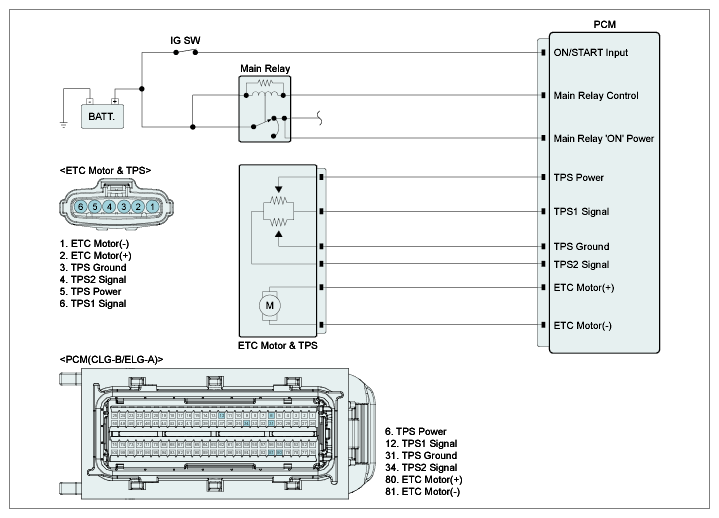

Diagnostic Circuit Diagram
Fig 1: PCM Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
