Signal Circuit Inspection

■ Check voltage

1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS2 signal terminal of ETC Motor & TPS harness connector and chassis ground.

   Specification:  Approx. 0V

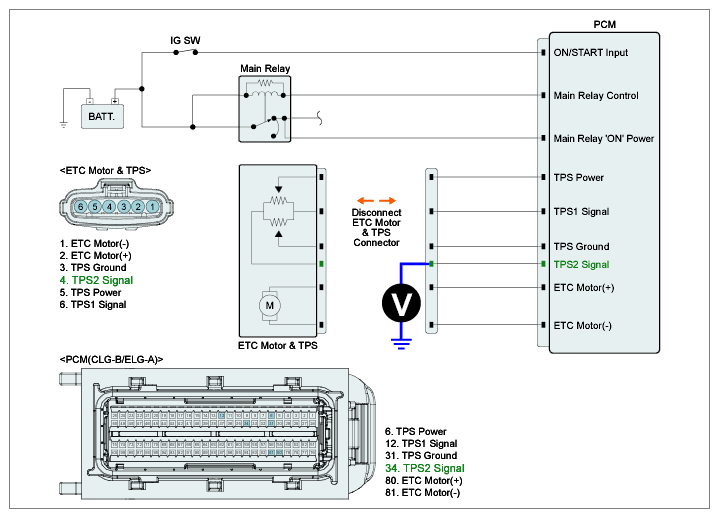

   Fig 1: Measuring Voltage Between TPS2 Signal Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Ground Circuit Inspection " procedure below.

   NO

   • Go to "Check short to battery in harness" as follows.

■ Check short to battery in harness

1. IG "OFF" and disconnect ETC Motor & TPS connector and PCM connector.
2. Measure resistance between TPS2 signal and TPS power terminals of ETC Motor & TPS harness connector. (Measurement "A")
3. Measure resistance between TPS2 signal and ETC motor (+) terminals of ETC Motor & TPS harness connector. (Measurement "B")
4. Measure resistance between TPS2 signal and ETC motor (-) terminals of ETC Motor & TPS harness connector. (Measurement "B")

   Specification:  Infinite

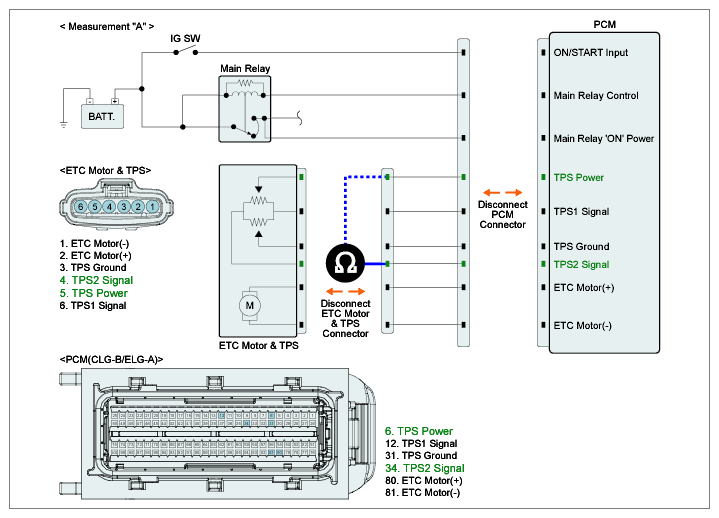

   Fig 2: Measuring Resistance Between TPS2 Signal And TPS Power Terminals Of ETC Motor & TPS Harness Connector (Measurement A)

   Courtesy of HYUNDAI MOTOR AMERICA

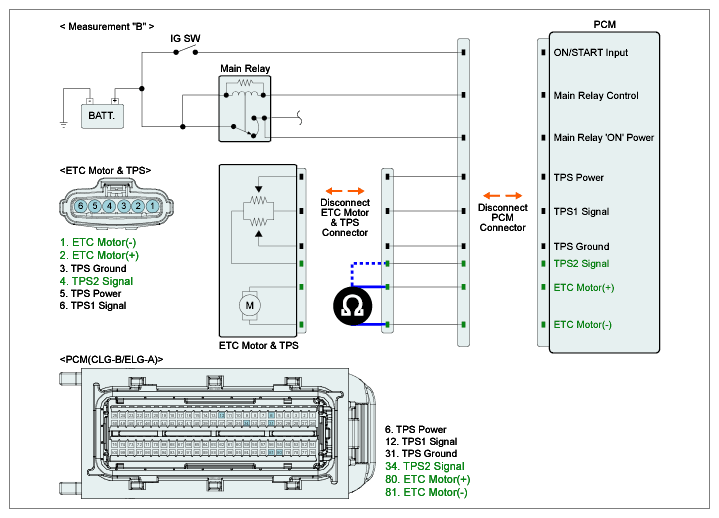

   Fig 3: Measuring Resistance Between TPS2 Signal And ETC Motor (+) Terminals Of ETC Motor & TPS Harness Connector (Measurement B)

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured resistance within specification?

   YES

   • Go to "Ground Circuit Inspection " procedure below.

   NO

   • Repair short to battery in harness, and go to "Verification of Vehicle Repair " procedure.
