Signal Circuit Inspection

■ Check voltage

1. IG "OFF" and disconnect Fuel Sender & Fuel Pump Motor connector and PCM connector.
2. IG "ON".
3. Measure voltage between Fuel Sender Input signal terminal of PCM harness connector and chassis ground.

   Specification:  Approx. 7 ~ 10V

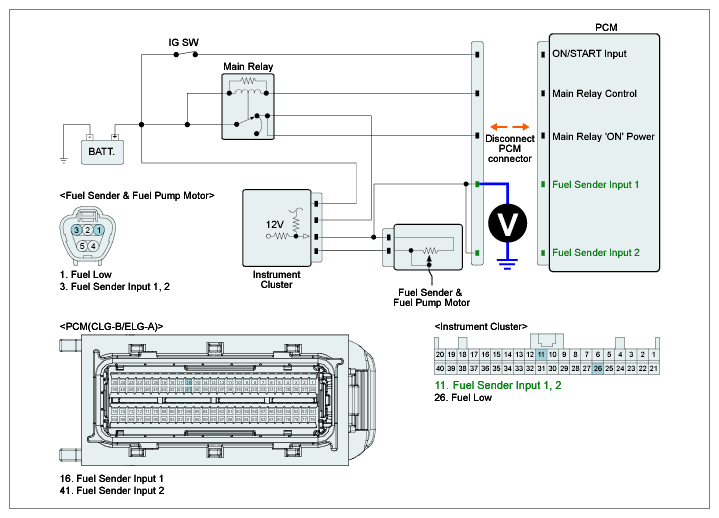

   Fig 1: Measuring Voltage Between Fuel Sender Input Signal Terminal Of PCM Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Component Inspection" procedure below.

   NO

   • Repair short to ground or open in harness and go to "Verification of Vehicle Repair " procedure.
