Component Inspection

■ Check Ignition Coil

1. IG "OFF" and disconnect ignition coil connector.
2. Measure resistance between power and signal terminals of ignition coil connector. (Measurement "A")
3. Measure resistance between power terminal of ignition coil connector and out terminal of secondary ignition coil.

   (Measurement "B")

   Specification:

   Resistance (Ω)	"A" Primary Coil	"B" Secondary Coil
   	0.62 ± 10% (20°C) (68°F)	7.0k ± 15% (20°C) (68°F)

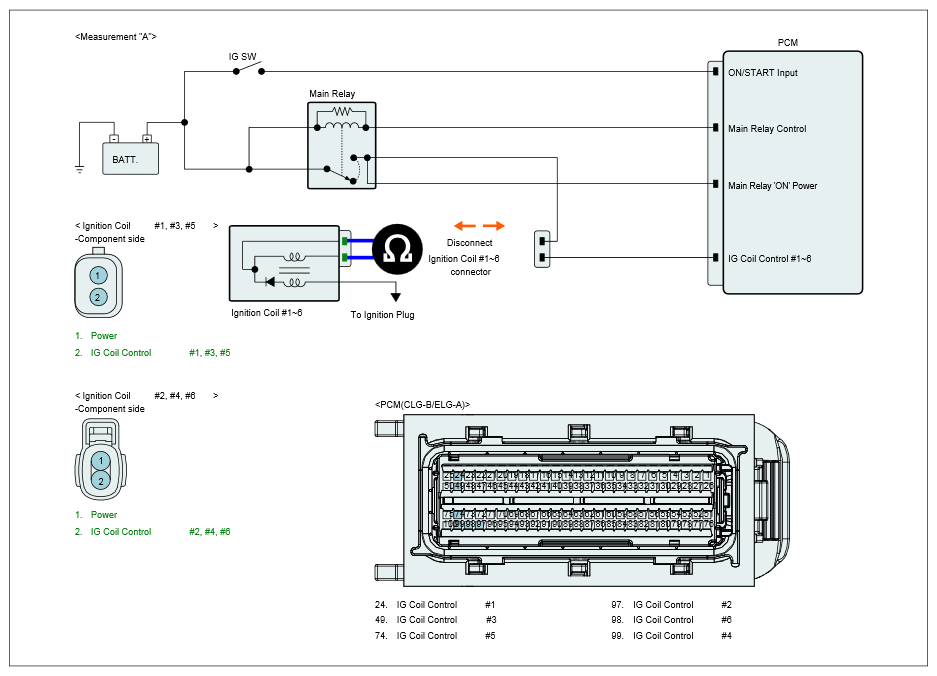

   Fig 1: Measuring Resistance Between Power And Signal Terminals Of Ignition Coil Connector (Measurement A)

   Courtesy of HYUNDAI MOTOR AMERICA

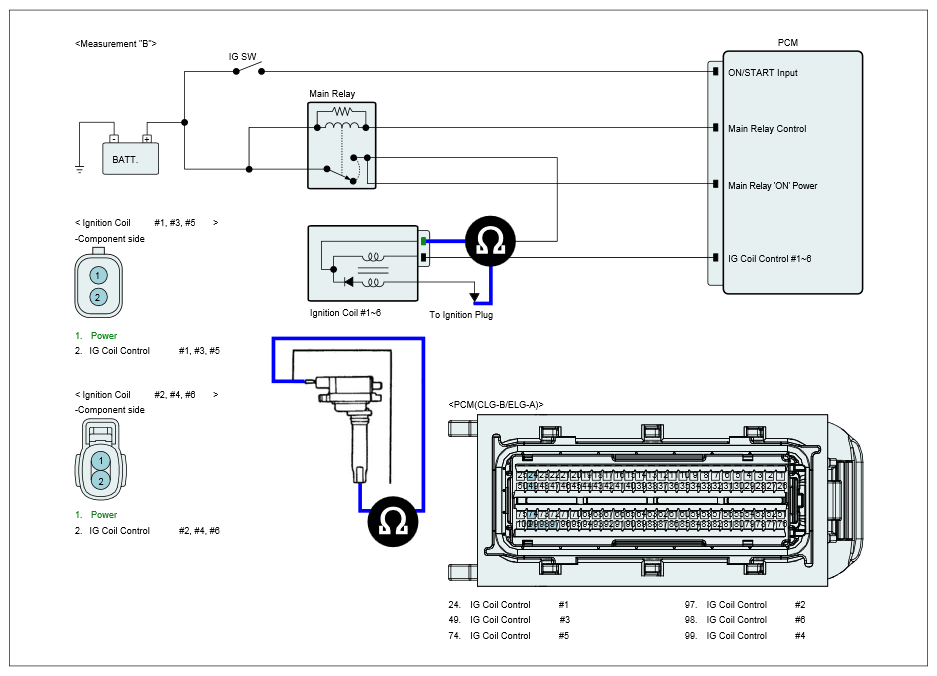

   Fig 2: Measuring Resistance Between Power Terminal Of Ignition Coil Connector And Out Terminal Of Secondary Ignition Coil (Measurement B)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known - good Ignition Coil and check for proper operation. If the problem is corrected, replace Ignition Coil and go to "Verification of Vehicle Repair " procedure.
