Power Circuit Inspection

■ Check Voltage

1. IG "OFF" and disconnect the main relay.
2. IG "ON".
3. Measure the voltage between power supply terminals of main relay harness connector and chassis ground.

   Specification:  Approx. B+ (Battery Voltage)

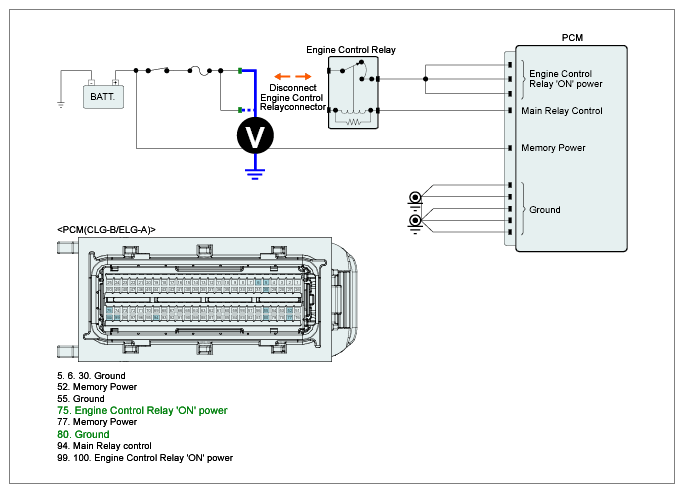

   Fig 1: Measuring Voltage Between Power Supply Terminals Of Main Relay Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Control Circuit Inspection " procedure below.

   NO

   • Check the fuse between battery and main relay.
   • Repair open or short to ground in power harness and go to "Verification of Vehicle Repair " procedure.
