Signal Waveform & Data

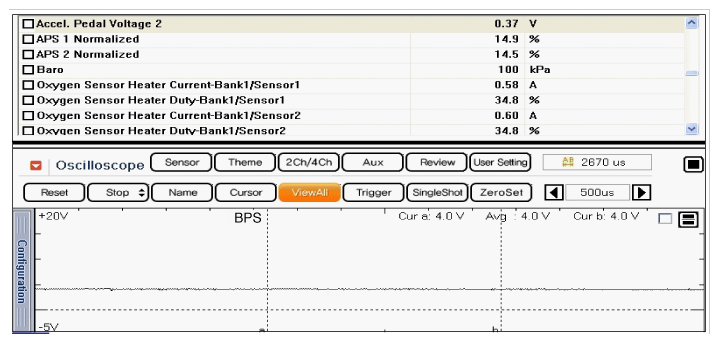

Fig 1: Screen Display - Normal Data & Waveform Of BPS At Approx. 1 ATM Condition
G12090286Courtesy of HYUNDAI MOTOR AMERICA
