Engine Control System Diagnosis (3 Of 3)
>>
DTC P2271: O2 Sensor Signal Stuck Rich (Bank 1 Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

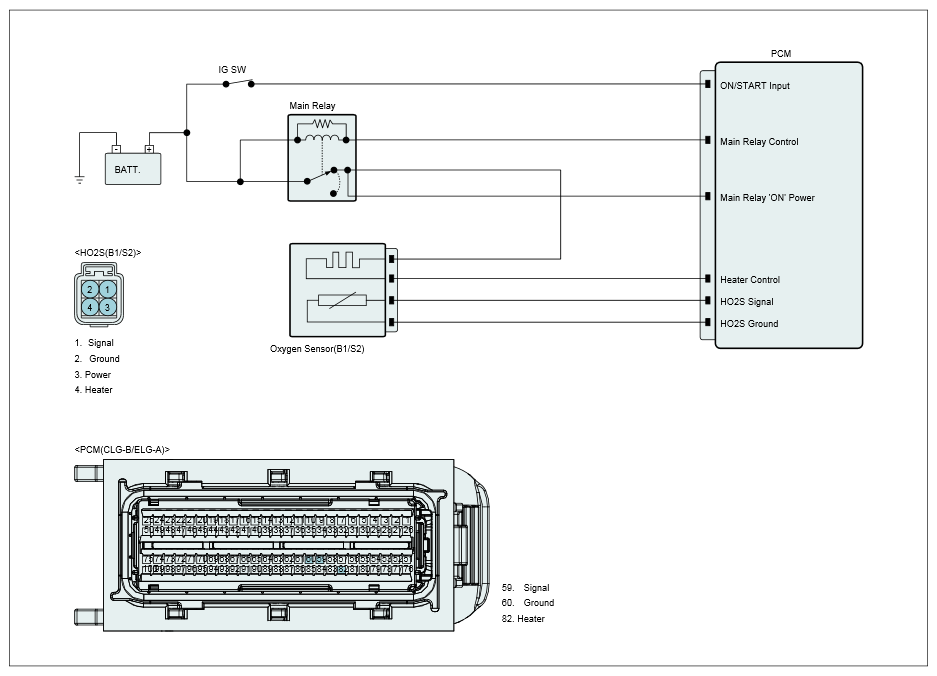

Fig 1: PCM Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
