Component Inspection

■ LIN communication line waveform check

1. IG "OFF"
2. Connect probe to battery sensor to check signal waveform by using oscilloscope function.
3. IG "ON" and monitor signal waveform.

   Specification:  Signal waveform will be displayed as Signal Waveform & Data

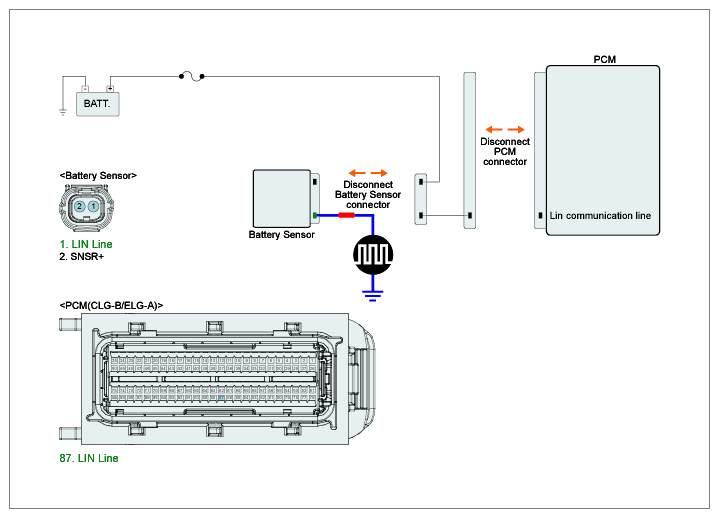

   Fig 1: Battery Sensor Circuit Diagram

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured signal waveform O.K?

   YES

   • Go to "Verification of Vehicle Repair " procedure below.

   NO

   • Substitute with a known - good battery sensor and check for proper operation. If the problem is corrected, replace battery sensor and go to "Verification of Vehicle Repair " procedure below.
