Components And Components Location: Components

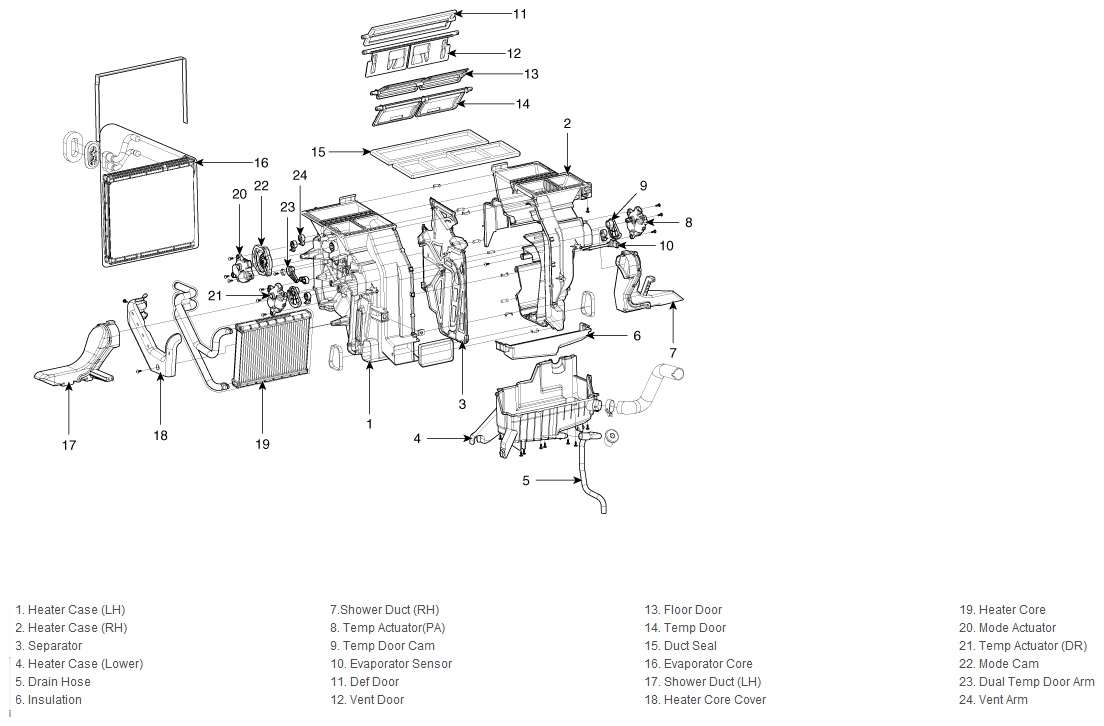

Fig 1: Heater Unit Components
G12093418Courtesy of HYUNDAI MOTOR AMERICA
