Azera Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System
>>
SS-B Solenoid Valve (ON/OFF)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

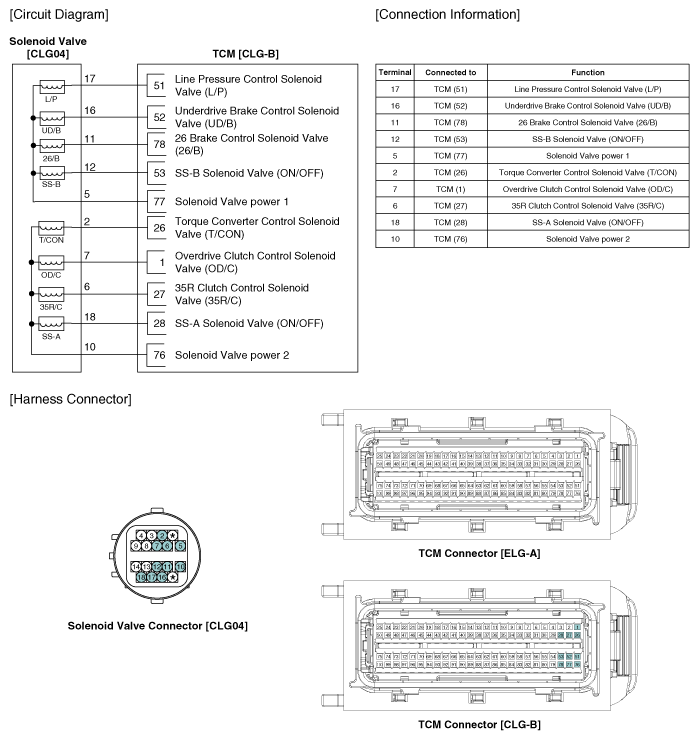

Fig 1: SS-B Solenoid Valve Circuit
Courtesy of HYUNDAI MOTOR AMERICA
