Signal Waveform & Data

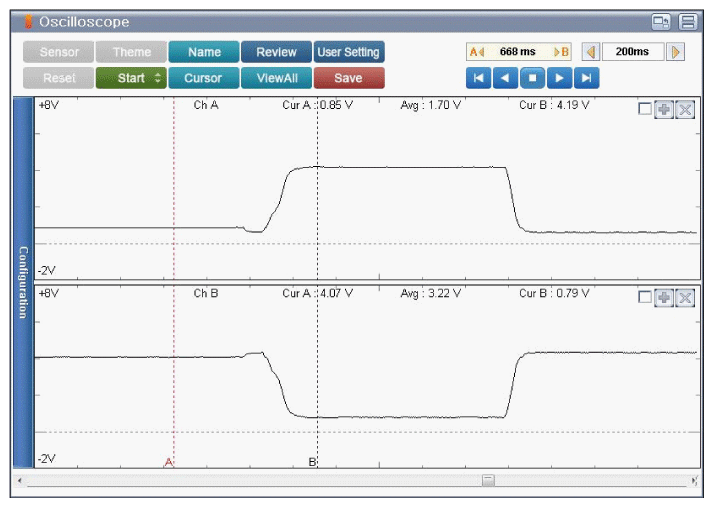

Fig 1: Scantool Display - Normal Waveform Of TPS1 & TPS2 With No Accel Padal Depressed Under IG ON Condition
G12019957Courtesy of HYUNDAI MOTOR AMERICA
