Control System Logic

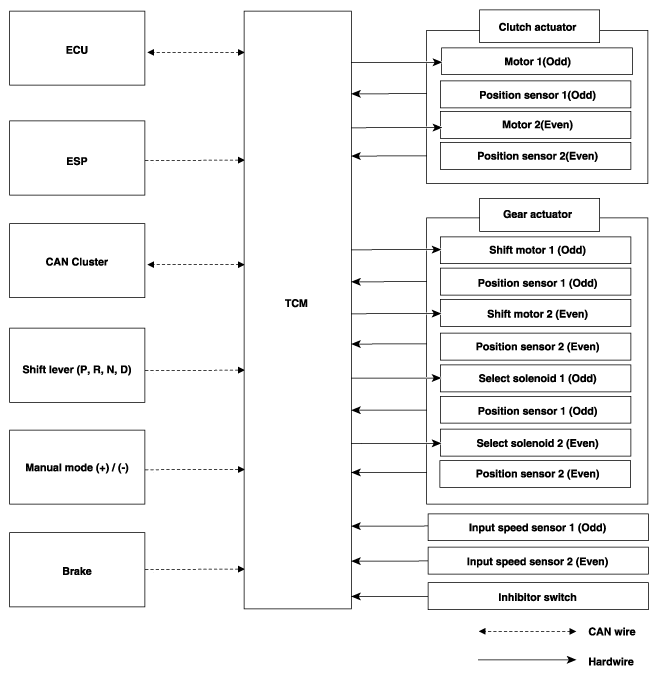

Fig 1: Dual Clutch Transmission Control System Communication Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
