Components And Components Location: Components

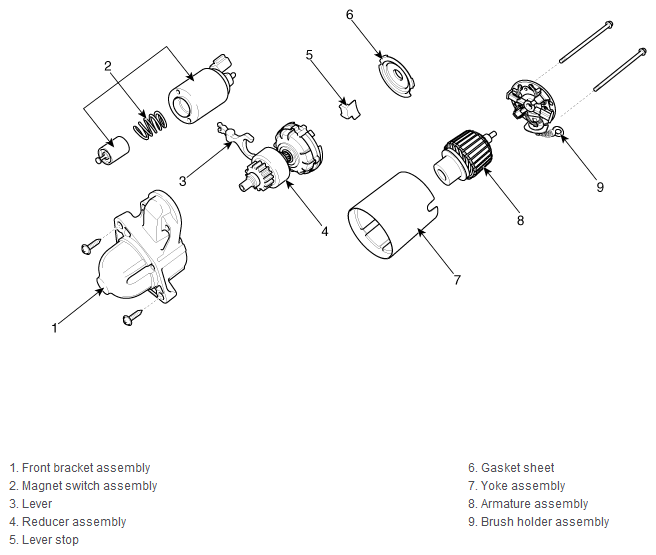

Fig 1: Exploded View Of Starter Components
G12066158Courtesy of HYUNDAI MOTOR AMERICA
