Components And Components Location: Components

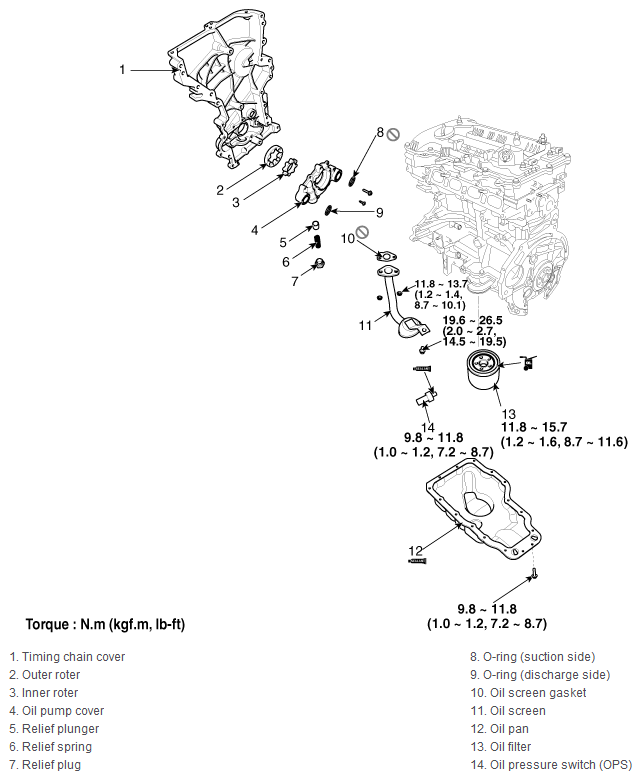

Fig 1: Lubrication System Components With Torque Specification
G12074255Courtesy of HYUNDAI MOTOR AMERICA
