Hyundai
>>
2017
>>
Elantra GT Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Variable Intake Solenoid (VIS) Valve
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (A/T)

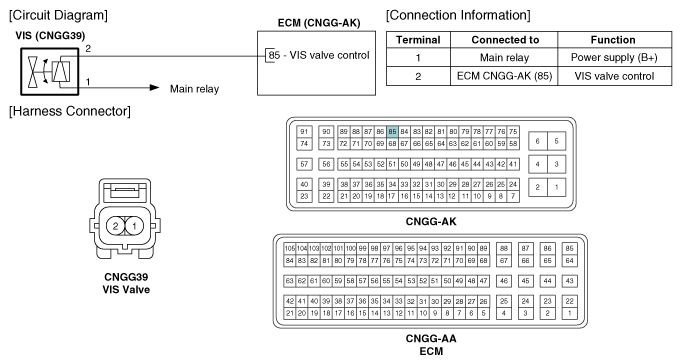

Fig 1: Variable Intake Solenoid (VIS) Valve Circuit (A/T)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
