Elantra GT Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Hydraulic System
>>
Oil Pump
>>
Components And Components Location
>>
Components
>>
Oil Pump Operation Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Oil Pump Operation Flow

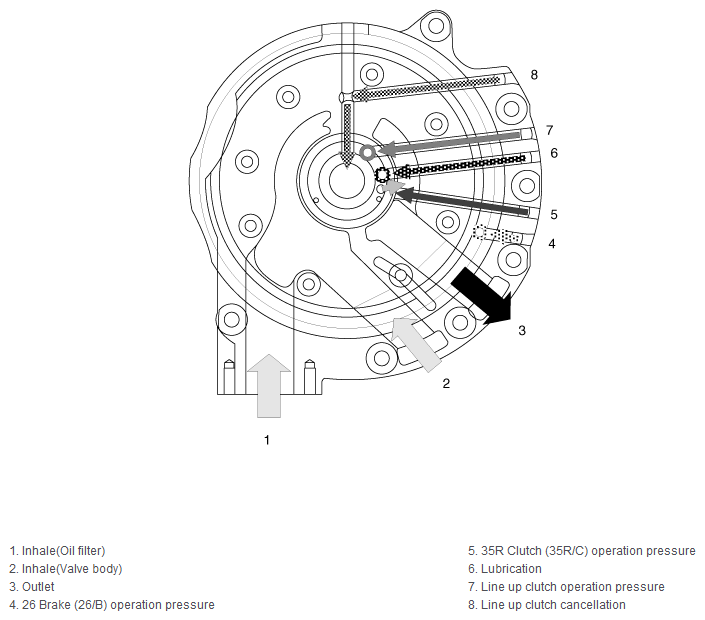

Fig 1: Oil Pump Operation Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
