Inspection flow

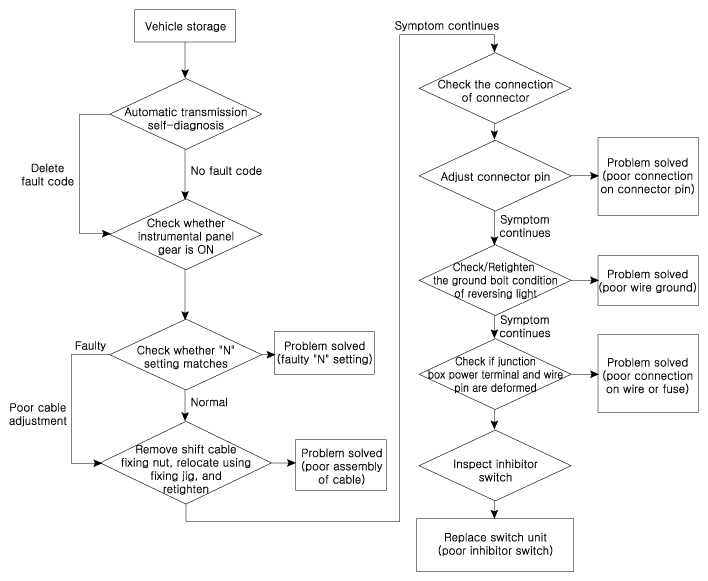

Fig 1: Automatic Transmission Troubleshooting Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
